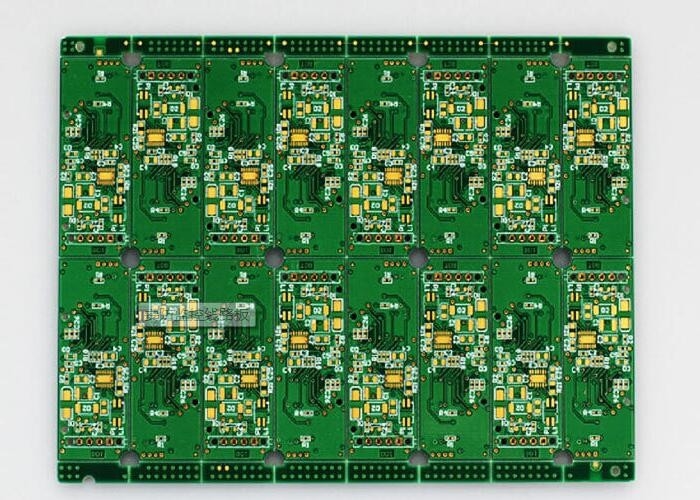

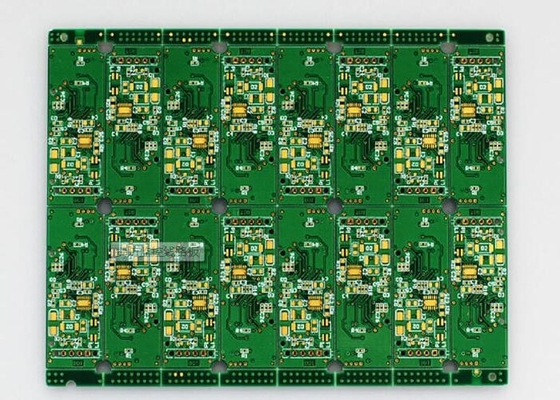

Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion

Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion

  • High Light

    oem 4 layer pcb board

    ,

    protection conclusion 4 layer pcb board

    ,

    hdi multilayer oem pcb board

  • Product Name
    HDI PCB Board
  • Material
    FR4, 94v0 Circuit Board
  • Copper Thickness
    1OZ
  • Min. Line Spacing
    0.030mm; 0.13mm As Requested
  • Min. Hole Size
    Laser 0.05mm ; Mechnical 0.15mm
  • Service
    One-stop Service,PCB&PCBA,ODM And OEM
  • PCB Assembly Method
    Mixed, SMT, And THT
  • Board Thickness
    1.6mm
  • Solder Mask
    Green
  • Number Of Layers
    4 Layers
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS , UL, IPC-A , UL, QC080000
  • Model Number
    PCB Assembly 08
  • Minimum Order Quantity
    3 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion

OEM 1.6mm 4-Layer PCB Board for security and protection conclution



HDI PCB Board Introduction



The High-Density Interconnect (HDI) Printed Circuit Boards is shorted as HDI PCB Board

With little space between the PCB components, and making the board space smaller, at the same time the board functionally isn’t affected.

That is, a PCB with about 120 – 160 pins per square inch is an HDI PCB. All of the other electronic components are mounted on the printed circuit boards(PCBs),which are the foundation.



PCB CAPABILITIES


Base material FR4,High-TG FR4,CEM3,aluminum, High frequency(Rogers,Taconic,Aron,PTFE,)
Layers 1-46
Copper Thickness 0.3oz,0.5oz, 1oz, 2oz, 3oz,4oz,5oz, 6oz
Dielectric Thickness 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
board Core Thickness 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,
1.5mm, 2.0mm, 3.0mm and 3.2mm
Board Thickness 0.3mm - 4.0mm
Thickness Tolerance +/-10%
Surface Finishing HASL lead free,ENIG,Plated Gold,Immersion Gold,OSP
Solder Mask Color Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Legend Color Black, White etc
Assembly Types Surface mount
Thro-hole
Mixed technology (SMT & Thru-hole)
Single or double sided placement
Conformal coating
Shield cover assembly for EMI emission control
Parts Procurement Full Turnkey, Partial Turnkey, Kitted / Consigned
Component types SMT 01005 or larger
BGA 0.4mm pitch, POP (Package on Package)
WLCSP 0.35mm pitch
Hard metric connectors
Cable & wire
Other Techniques Free DFM Review
Box Build Assembly
100% AOI test and X-ray test for BGA
Components cost-down
Function test as custom
Protection technology


The types of HDI PCB


1.through vias from surface to surface,
2.with buried vias and through vias,
3.two or more HDI layer with through vias,
4.passive substrate with no electrical connection,
5.coreless construction using layer pairs
6.alternate constructions of coreless constructions using layer pairs.





Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 0



Work flow for HDI

Board Cut - Inner Wet film -DES - AOI - Brown Oxido - Outer Layer Press - Out Layer Lamination - X-RAY & Rounting - Copper reduce & brown oxide - Laser Drilling - Drilling - Desmear PTH - Panel plating - Outer Layer dry film - Etching - AOI- Impedance Testing - S/M Pluged hole - Solder Mask - Component Mark - Impedance testing - Immersion Gold -V-cut - Routing - Electrical Test - FQC - FQA -Package -Shipment

RoHS stack-up Blind Buried Vias hole HDI PCB 1

RoHS stack-up Blind Buried Vias hole HDI PCB 2



Similar products



Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 3

Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 4



Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



HDI PCB Board Application Field



Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics etc.



Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 5

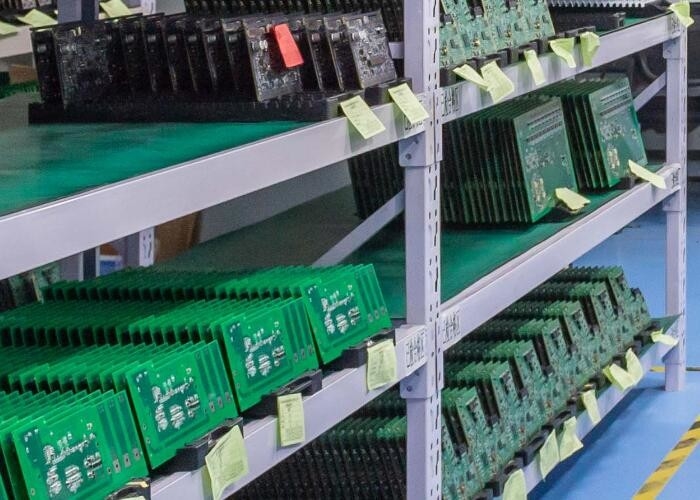

Workshop



Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 6Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 7

Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 8



Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box



Oem 1.6mm 4 Layer Pcb Board For Security And Protection Conclusion 9



FAQ



Q1:What kind of PCB file format can you accept for production?
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)

Q2:Is my PCB files safe when I submit them to you for manufacturing?

We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties.

Q3:What payments do you accept ?
-Telex Transfer(T/T),Western Union,Letter of Credit(L/C)
-Paypal,AliPay,Credit Card

Q4:How to get the PCB?
A:For small packages, we will ship the boards to you by DHL,UPS,FedEx,EMS. Door to door service! You will get your PCBs at your home.
B:For heavy goods more than 300kg, we may ship your boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.

Q5:What is your minimum order quantity?
Our MOQ is 1 PCS.

Q6: Can we visit your company?

No problem. You are welcome to visit us in Beijing. Or the branch factory is in Tianjin.

Q7: How can you ensure the quality of the PCB?
Our PCBs are 100% test including Flying Probe Test, E-test and AOI.
