High Light
1oz prototype pcb assembly
,image processing prototype pcb assembly
,immersion gold prototype circuit board assembly
-
Product Name1oz Prototype PCB Assembly FR4 Printed Circuit Board For Image Processing
-
Copper Thickness0.3oz 1oz 2oz 3 Oz ..... 6oz
-
LayersMulti-layer ,Double-side,Customized
-
Min. Line Spacing0.030mm/0.030mm
-
Board Thickness0.3.0.6.1.2 1.6 ......3.5mm
-
TypePrinting Circuit Board,PCBA Design
-
Outline ProfileRout/ V-cut/ Bridge/ Stamp Hole
-
Solder Mask ColorGreen, White,Black. Blue(Customized)
-
CraftsmanshipHASL，HASL PB FREE， Immersion Gold/Tin/Silver， Gold Finger Plating OSP，Immersion Gold + OSP
-
ApplicationConsumer Electronics / Industry/Medical/Consumer Electronic
-
Place of OriginCHINA
-
Brand NameHNL-PCB
-
CertificationISO9001,IS16949, ISO14001,ROHS ,IPC-A ,QC080000
-
Model NumberPCB Assembly
-
Minimum Order Quantity1 PC
-
PriceNegotiable
-
Packaging DetailsESD packaging with carton box
-
Delivery Time1-7days
-
Payment TermsT/T, Western Union, L/C, MoneyGram
-
Supply Ability10,000,000 Point /Day

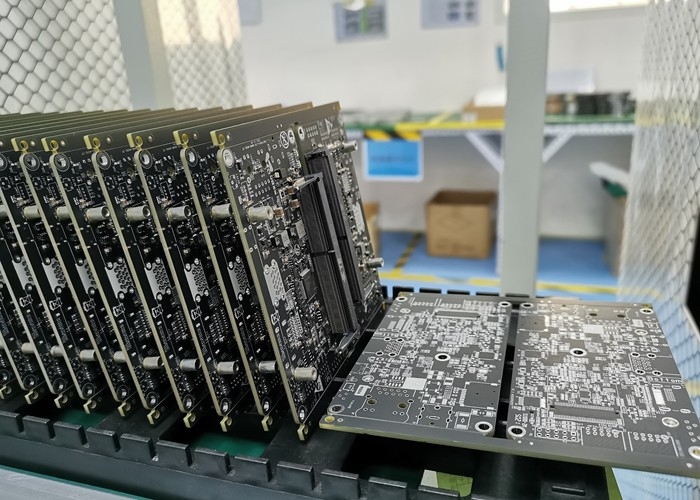

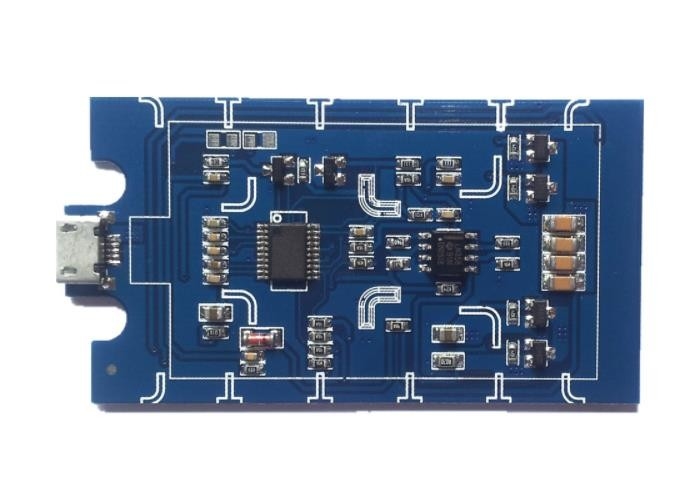

1oz Immersion Gold Prototype Pcb Assembly For Image Processing
1oz Prototype PCB Assembly FR4 Printed Circuit Board for image processing
Haina lean Electronics provides custom test service according to client's requirements and products.
Usually Haina lean Electronics Co.,Ltd PCBA Tech offers a full range of testing service. Including:
1. AOI(Automatic Optical Inspection)
2. Function Testing
3. In Circuit Testing
4. Testing Jig
5. Testing Service
6. X-Ray for BGA Testing
7. Printing Solder Paste Test
Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.
Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested.
Flash testing and earth bonding tests can also be undertaken where required.
PCB Capabilities
| FACTORY CAPABILITIES | |||
| No. | Items | 2019 | 2020 |
| 1 | HDI Capabilities | HDI ELIC (4+2+4) | HDI ELIC(5+2+5) |
| 2 | Max layer count | 32L | 36L |
| 3 | Board Thickness | Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm | Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm |
| 4 | Min.Hole Size | Laser 0.075mm | Laser 0.05mm |
| Mechnical 0.15mm | Mechnical 0.15mm | ||
| 5 | Min Line Width/Space | 0.035mm/0.035mm | 0.030mm/0.030mm |
| 6 | Copper Thickness | 1/3oz-4oz | 1/3oz-6oz |
| 7 | Size Max Panel size | 700x610mm | 700x610mm |
| 8 | Registration Accuracy | +/-0.05mm | +/-0.05mm |
| 9 | Routing Accuracy | +/-0.075mm | +/-0.05mm |
| 10 | Min.BGA PAD | 0.15mm | 0.125mm |
| 11 | Max Aspect Ratio | 10:1 | 10:1 |
| 12 | Bow and Twist | 0.50% | 0.50% |
| 13 | Impedance Control Tolerance | +/-8% | +/-5% |
| 14 | Daily Output | 3,000m2 (Max capacity of equipment) | 4,000m2 (Max capacity of equipment) |
| 15 | Surface Finishing | ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD | |
| 16 | Raw Material | FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI | |
FR4 Printed Circuit Board Introduction
Printed Circuit Boards include Single-layer, Double-layer, Multi-layer, Rigid Board, Rigid-flexible Board, Flexible Board, High Frequency Board,
HDI PCB board, Aluminum Substrate .
Haina lean Electronics Co., Ltd is one of the most professional PCB manufacture in Beijing,China.With 9 years of development, Haina Lean Electronics turns into a first class manufacture of HDI PCB , and undertake various board PCB services, including 1-36, HDI, thick copper layer, rigid flex, high frequency, Rogers+FR-4 mixed medium volume, lamination, buried aluminum, copper substrate, plate making proofing or quick expedited PCB proofing.
FR4 PCB Craftsmanship
Immersion gold ,Lead-free HASL,OSP,etc.
Our service
| Electronic Manufacturing Service | PCB Electronic Design |
| PCB Electronic Design | PCB Layout Service |
| PCB Assembly process service | PCBA Components Sourcing |
Delivery Time
| Prototype PCB | Batch | Prototype | Expedited |
| Double sides | 9 Days | 5 Days | 45h |
| Four-layer | 10 Days | 5 Days | 3 Days |
| Six-layer | 12 Days | 6 Days | 3 Days |
| Eight-layer | 12 Days | 7 Days | 4 Days |
| Ten-layer | 14 Days | 10 Days | 4Days |
| Twelve-layer | 14 Days | 10 Days | 5 Days |
| Fourteen-layer | 16 Days | 12Days | 6 Days |
| Sixteen-layer | 16 Days | 12 Days | 6 Days |
| Eighteen-layer | 18 Days | 14 Days | 6 Days |
| Twenty-layer | 18 Days | 14 Days | 10 Days |
| Twenty two-layer | 20 Days | 14 Days | 10 Days |
| Twenty four-layer | 20 Days | 14 Days | 10 Days |
| Twenty six-layer | 20 Days | 14 Days | 10 Days |
| Twenty eight-layer | 20 Days | 14 Days | 10 Days |
FR4 Printed Circuit Board Application Field
Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.
Workshop
Testing service
1. Manual visual inspection of PCB board
2. PCB board online test
3. PCB board function test
4. AOI (Automatic optical inspection)
5. Automatic X-ray inspection
6. Laser detection system
7. Size detection
Above is the PCB testing service.
Partners
Common packaging
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box
Our services cover all industries and reach all parts of the world.
