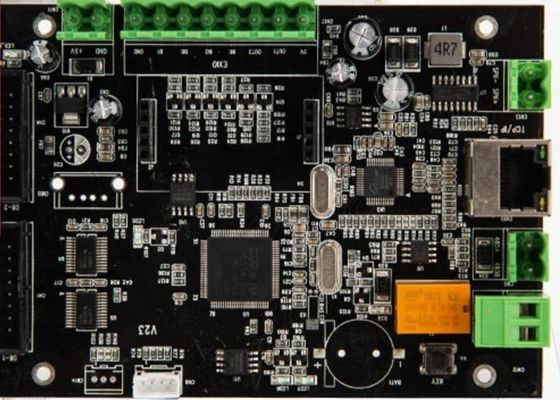

FR4 HASL Pb-Free OEM Rigid Multilayer SMT PCB Double Side PCB Assembly



Double Side PCB Assembly Introduction



Double sided PCBs have two sided traces with a top and bottom layer. For these types of circuit boards are more complex than single sided PCBs, it would be more difficult to produce. Assembler mount conductive copper and components on both sides of the circuit board, which allows the traces to cross over each other. This results in a higher density of circuits without the need of point-to-point soldering.

The benefits of using double sided PCBs far outweigh the cons.



PCBA CAPABILITIES

Our SMT capabilities:



SMT Assembly: SMT provides a flexible high technology.

These solutions include:

7 high-speed placement machines,

7 automatic printers with fiducial alignment,

2 X-ray machines,

BGA maintenance machines,

ICT test machines



Our DIP function:



A-8 semi-assembly production line with four wave soldering machines

1 U-shaped automatic assembly line for box-type building products with test stations

High temperature / low temperature aging test furnace B-4 for products required for aging test

With time control and temperature control

All products are 100% inspected and tested during the DIP process

Haina lean Electronics Co.,Ltd is a competitive China customize pcba for medical breathing machine OEM manufacturer, supplier and vendor, you can get quick turn customize pcba for medical breathing machine production prototypes and samples from our factory.

Hot Tags: customize pcba for medical breathing machine, China, supplier, manufacturer, factory, OEM manufacturer, vendor, samples, production, prototypes, quick turn



Double Side PCB Assembly Process





Similar products





Double Side PCB Assembly Delivery Time



Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD



Double Side PCB Assembly Application Field



Our products are widely used in

1.communication equipment,

2.industrial control,

3.consumer electronics,

4.medical equipment,

5.aerospace,

6.light-emitting diode lighting,

7.automotive electronics etc





Workshop





Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box





Why choose us?



1. We are the manufacturer/ factory; Welcome to visit us one day.

2. We have good quality control systems, including AOI, ISO 9001 etc. ;

3. All the material we use have the RoHS identify;

4. All the components we use are the New & Original;

5. One-stop service can be provided from PCB design, 1-36 layers PCB manufacturing, components sourcing, PCB Assembly, to Fully Product Assembly.
