Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole

  • High Light

    fr4 4 layer pcb assembly

    ,

    through hole 4 layer pcb assembly

    ,

    fr4 through hole pcb assembly

  • Product Name
    Through Hole PCB Assembly
  • Material
    FR4, Halogen Free, Aluminum, CEM-1, High TG
  • Copper Thickness
    1OZ To 6OZ
  • Min. Line Spacing
    8/4mil
  • Board Thickness
    1.6mm, 2mm, ...... 3.5mm
  • Hole Size
    0.3mm(Min. Laser 0.05mm; Mechnical 0.15)
  • Surface Finishing
    HASL, Lead Free HASL, HASL/OSP/ENIG
  • Layers
    4layer;as Requires
  • Application
    Communication, Medical Device, Video Security, Monitoring System Etc.
  • Testing Service
    Function Test,E-test Or Fly-probe According To Order Quantity,Solder Paste Testing
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS ,UL, IPC-A ,QC080000
  • Model Number
    PCB Assembly 06
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole

FR4 4layer Multilayer Circuit board PTH Through Hole PCB Assembly



Through Hole PCB Assembly Introduction



Here use semi-automatic and automatic insertion equipment and ensure proper tape and reel component purchasing, we deliver timely and low-cost solutions. Offers both automated and hand assembling of through hole components. We have computer to aid manufacturing to clearly map component placement for each workstation. Both simple and complex board assemblies are supported by our assembly lines. For assemblies some requires manual/mechanical assembly, our assemblers team is of highly trained, qualified and experienced, who work under the supervision of qualified engineering staff.

PCB Assembly types: Surface mount; Thro-hole; Mixed technology (SMT & Thru-hole); Single or double sided placement; Conformal coating etc.



PCBA CAPABILITIES



Base material FR4,High-TG FR4,CEM3,aluminum, High frequency(Rogers,Taconic,Aron,PTFE,)
Layers 1-46
Copper Thickness 0.3oz,0.5oz, 1oz, 2oz, 3oz,4oz,5oz, 6oz
Dielectric Thickness 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
board Core Thickness 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,
1.5mm, 2.0mm, 3.0mm and 3.2mm
Board Thickness 0.3mm - 4.0mm
Thickness Tolerance +/-10%
Surface Finishing HASL lead free,ENIG,Plated Gold,Immersion Gold,OSP
Solder Mask Color Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Legend Color Black, White etc
Assembly Types Surface mount
Thro-hole
Mixed technology (SMT & Thru-hole)
Single or double sided placement
Conformal coating
Shield cover assembly for EMI emission control
Parts Procurement Full Turnkey, Partial Turnkey, Kitted / Consigned
Component types SMT 01005 or larger
BGA 0.4mm pitch, POP (Package on Package)
WLCSP 0.35mm pitch
Hard metric connectors
Cable & wire
Other Techniques Free DFM Review
Box Build Assembly
100% AOI test and X-ray test for BGA
Components cost-down
Function test as custom
Protection technology



Automotive PCBA process

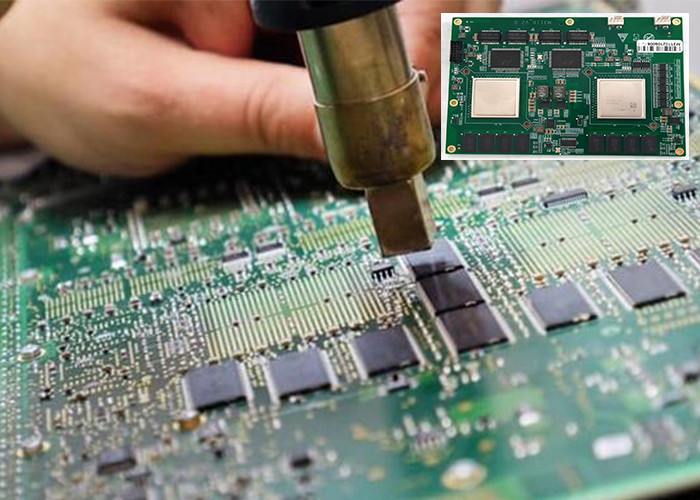

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 0

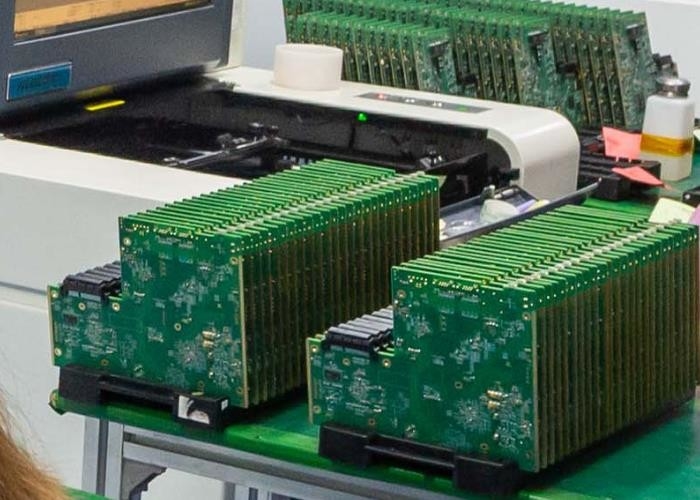

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 1



Our SMT capabilities:



SMT Assembly: SMT provides a flexible high technology.

These solutions include: 7 high-speed placement machines, 7 automatic printers with fiducial alignment, 2 X-ray machines, BGA maintenance machines, ICT test machines



Our DIP function:



A-8 semi-assembly production line with four wave soldering machines

1 U-shaped automatic assembly line for box-type building products with test stations

High temperature / low temperature aging test furnace B-4 for products required for aging test

With time control and temperature control

All products are 100% inspected and tested during the DIP process

Haina lean Electronics Co.,Ltd is a competitive China customize pcba for medical breathing machine OEM manufacturer, supplier and vendor, you can get quick turn customize pcba for medical breathing machine production prototypes and samples from our factory.

Hot Tags: customize pcba for medical breathing machine, China, supplier, manufacturer, factory, OEM manufacturer, vendor, samples, production, prototypes, quick turn.



Through Hole PCB Assembly Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



Through Hole PCB Assembly Application Field



Printed circuit boards And PCB Assembly are mainly used for many communication industry ,Aprospace ,Auto Industry ,Communication,Indutrial Control ,Medical device ,Smart Home,consumer electronics ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.



Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 2

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 3



Workshop photos



Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 4

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 5

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 6





Our advantages:



Reliable PCB Manufacturing & Assembly;

Quality PCB Fabrication;

Best On Time PCB Shipping Record;

Financially Stable PCB Company;

24 Hour Tech Support; PCB Instant Quoting;

Easy PCB Order Status Tracking;

No Minimum PCB Order Requirements;

Waived Tooling Charges;

Free PCB Design Software & Free File Check.

Haina lean Electronics Co., Ltd is a one-stop EMS supplier integrating PCB design, PCB manufacturing, Component sourcing and PCB assembly.

Here is strong component supply chain and procceurement team. Prototype and mass production are available. Competitive price is for high-quality and services. Exported to worldwide customer in US, Europe, Canada.



Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box



Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 7



FAQ



Q1.

What's your MOQ ?
No Moq ,We accept small orders as well as mass production.

Q2.

For small quantity orders, can you produce prototype PCB?

Haina lean Electronics Co., has the capability to produce circuit boards in any amount.
Q3.

Can You provide fast rotating PCB ?
Yes , we can provide fast service 24 hours .
Q4.

What are the services you can provide ?
One-stop contract manufacturing
PCB board, PCB Design & Layout, PCB Assembly, PCBA programming & functional testing, Electronic components purchasing service, Enclosure molding & final assembly with labels,instructions,enclosure, boxes.

Q5.

Whether all PCBA s will be tested before delivery ?
Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .
Q6.

Do you provide OEM service ?
Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .

Q7.

Shipping Cost ?
The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other transportation services .

Q8.

Do you accept process materials supplied by clients?
Yes, we can provide component source, and we also accept component from client. OEM and ODM orders are accepted.

Q9.

How to get an official quote before placing your order:

To get a prototype assembly quote, send the following files to sales2(at)hnl-electronic.com
• BOM List
• Gerber files
• Quantities to build

Fr4 4Layer Pcb Assembly Multilayer Circuit Board through hole 8
