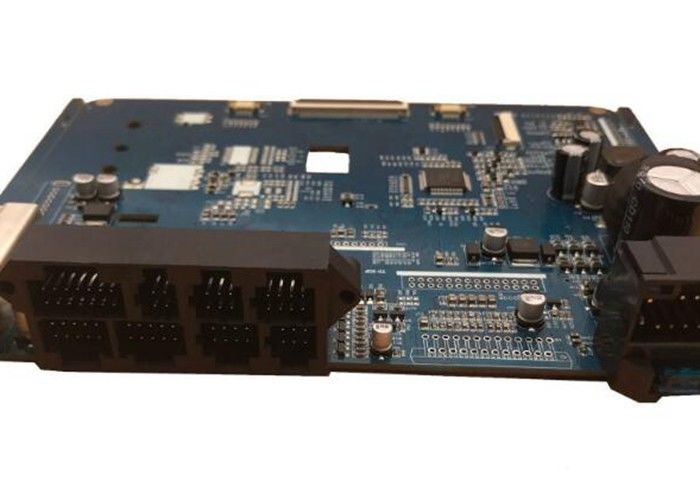

Customize FR4 Multilayer Medical PCB Assembly for Breathing Machine

Medical PCB Assembly Introduction

During the viral period, the frequency band of the ventilator product is lacking. As an effective means to artificially replace the autonomous ventilation function, the ventilator has been widely used for respiratory failure caused by various reasons, anesthesia respiratory management during major surgery, and respiratory support Treatment and emergency resuscitation occupy a very important position in the field of modern medicine. The ventilator is a vital medical device that can prevent and treat respiratory failure, reduce complications, save and extend the life of patients.

Haina lean Electronics Co.,Ltd is a competitive China customize pcba for medical breathing machine OEM manufacturer, supplier and vendor, you can get quick turn customize pcba for medical breathing machine production prototypes and samples from our factory.

Factory Capacity


Our service

1.PCB Design & Layout     2.PCB Prototyping             3.PCB Fabrication              4.Turn Prototype PCB Assembly
5.PCB Assembly Service   6.Contract PCB Assembly  7.Trunkey PCB Assembly  8.Components sourcing,

9.Function test                  10.conformal coating           11.complete assembly


Workshop & Equipment


Our assembly process has been designed to meet all variations of PCBs, including single- or double-sided boards, Multilayer , rigid ,flexible circuits and Mixed technology. We run both leaded and RoHS/Lead-Free Surface Mount Technology (SMT) lines as well as wave solder equipment for both RoHS and leaded processes. Our manufacturing process allows for the highest quality product through process automation, environmental controls, automatic optical inspection (AOI) and flying probe at the best competitive price.

Medical PCB Assembly Application

Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.


Delivery Time

FAQ

Q1: What service do you have?
A1: We provide turnkey solution including RD, PCB fabrication, SMT, final assembly ,testing and other
value-added service.

Q2: What are the main products of your PCB/PCBA services?
A2: Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy,
Metering/Measurements, Consumer Electronics.

Q3: Can we inspect quality during production?
A3: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer
inspect our production process and check in house

Q4: How can we ensure our information should not let third party to see our design?
A4: We can sign NDA effect by customer side local law and promising to keep customers data in high
confidential level.

Q5: What does customer need for a customized PCB order?
A5: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in
the correct fomat, you can send all the details related to the products.

Q7: Does you have an minimum order quantity?
A7: We accept order with as low as a quantity of 1 (piece or panel).

Q8:what is the difference between PCB, PCBA and FPC?

A8: PCB is bare board without any components.

PCBA is the PCB through SMT or plug-in processing, welding assembly on the PCB board required electronic components, such as IC, resistor, capacitor, crystal oscillator, transformer and other electronic components, after reflow oven high temperature heating, will form the mechanical connection between components and PCB board, thus forming PCBA.

FPC generally uses Pi as base material, which is flexible and can be bent and flexed at will .
