10x10cm Medical PCB Assembly Tg150 HF Dip Smt THT Contract

FR4 Tg150 HF Dip Smt Contract Manufacturing Medical PCB Assembly


Medical PCB Assembly Introduction

One glance and you'll know you have found the right manufacturing partner! We offer a quick quotation and efficient lead-time – especially on samples and low volume orders.
Our primary products functions in these industries including automotive, industrial control, security, communication, medical and new energy. We’re focusing on providing one-stop EMS(electronic manufacturing services) to clients all over the world.
We know that the development of medical PCB applications is as fast as the medical device industry itself.
Haina Lean Electronic CO., LTD offers the most advanced manufacturing services of electronic assembly for medical devices.
Medical devices which include printed circuit board assemblies have special safety considerations because they are electrically powered.

Factory Capacity


Base materialFR4,High-TG FR4,CEM3,aluminum, High frequency(Rogers,Taconic,Aron,PTFE,)
Copper Thickness0.3oz,0.5oz, 1oz, 2oz, 3oz,4oz,5oz, 6oz
Dielectric Thickness0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
board Core Thickness0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,
1.5mm, 2.0mm, 3.0mm and 3.2mm
Board Thickness0.3mm - 4.0mm
Thickness Tolerance+/-10%
Surface FinishingHASL lead free,ENIG,Plated Gold,Immersion Gold,OSP
Solder Mask ColorGreen, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Legend ColorBlack, White etc
Assembly TypesSurface mount
Mixed technology (SMT & Thru-hole)
Single or double sided placement
Conformal coating
Shield cover assembly for EMI emission control
Parts ProcurementFull Turnkey, Partial Turnkey, Kitted / Consigned
Component typesSMT 01005 or larger
BGA 0.4mm pitch, POP (Package on Package)
WLCSP 0.35mm pitch
Hard metric connectors
Cable & wire
Other TechniquesFree DFM Review
Box Build Assembly
100% AOI test and X-ray test for BGA
Components cost-down
Function test as custom
Protection technology

Medical PCB Assembly Technologies
1. Multi-layer / High Density Interconnect (HDI) PCBs ;
2. THT (Through-Hole Technology );
3. Flex & Rigid-Flex ;
4. SMT & mini SMT ;

5. BGA techonology ;
6. Reflow Soldering ;
7. Wave-soldering ;
8. Conformal Coating, etc.
Our service
1.PCB Design & Layout     2.PCB Prototyping             3.PCB Fabrication              4.Turn Prototype PCB Assembly
5.PCB Assembly Service   6.Contract PCB Assembly  7.Trunkey PCB Assembly  8.Components sourcing,
9.Function test                  10.conformal coating           11.complete assembly

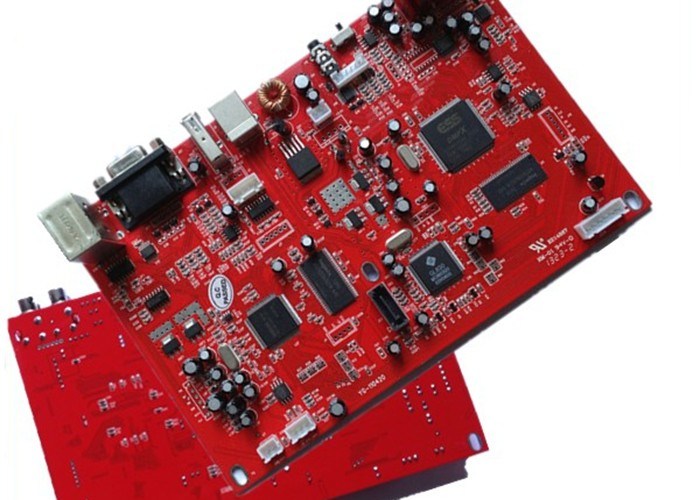

10x10cm Medical PCB Assembly Tg150 HF Dip Smt THT Contract 0
