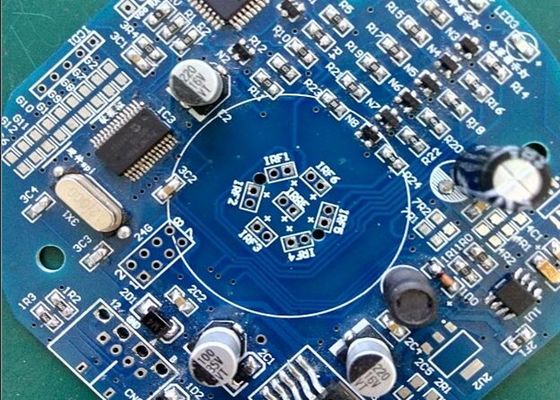

OEM 94v0 Electronic Printed Circuit Board PCB Assembly Prototype

PCB Assembly Prototype Introduction



Prototype printed circuit board assemblies also named surface-mount technology (SMT) PCB prototypes, PCBA prototype assembly, PCB sample assembly etc.

The term prototype PCB Assembly refers to a fast prototype PCBA used to test the function of new electronic designs.

The prototype PCB assembly section of our manufacturing facility has a unique layout that allows for flexible use of both automated and manual parts-loading stations.

Our engineers is qualified and experienced in producing surface-mount (SMT), through-hole (THT) and mixed-technology components and fine-pitch parts and ball grid arrays (BGAs) for high-density FR-4 PCBs.



PCB CAPABILITIES



FACTORY CAPABILITIES
No.	Items	2019	2020
1	HDI Capabilities	HDI ELIC (4+2+4)	HDI ELIC(5+2+5)
2	Max layer count	32L	36L
3	Board Thickness	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4	Min.Hole Size	Laser 0.075mm Mechnical 0.15	Laser 0.05mm Mechnical 0.15
5	Min Line Width/Space	0.035mm/0.035	0.030mm/0.030mm
6	Copper Thickness	1/3oz-4oz	1/3oz-6oz
7	Size Max Panel size	700x610mm	700x610mm
8	Registration Accuracy	+/-0.05mm	+/-0.05mm
9	Routing Accuracy	+/-0.075mm	+/-0.05mm
10	Min.BGA PAD	0.15mm	0.125mm
11	Max Aspect Ratio	10:1	10:1
12	Bow and Twist	0.50%	0.50%
13	Impedance Control Tolerance	+/-8%	+/-5%
14	Daily output	3,000m2 (Max capacity of equipment)	4,000m2 (Max capacity of equipment)
15	Surface Finishing	HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16	Raw Material	FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI



PCBA CAPABILITIES



PCBA Capability
Material Type	Item	Min	Max
PCB	Dimension (length,width,height.mm)	50*40*0.38	600*400*4.2
	Material	FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
	Surface finish	HASL,OSP,Immersion gold,Flash Gold Finger
Components	Chip&IC	1005	55mm
	BGA Pitch	0.3mm	-
	QFP Pitch	0.3mm	-



Our SMT capabilities:



SMT Assembly: SMT provides a flexible high technology. These solutions include:

7 high-speed placement machines,

7 automatic printers with fiducial alignment,

2 X-ray machines,

BGA maintenance machines,

ICT test machines



Our DIP function:



A-8 semi-assembly production line with four wave soldering machines

1 U-shaped automatic assembly line for box-type building products with test stations

High temperature / low temperature aging test furnace B-4 for products required for aging test

With time control and temperature control

All products are 100% inspected and tested during the DIP process

Haina lean Electronics Co.,Ltd is a competitive China customize pcba for medical breathing machine OEM manufacturer, supplier and vendor, you can get quick turn customize pcba for medical breathing machine production prototypes and samples from our factory.

Hot Tags: customize pcba for medical breathing machine, China, supplier, manufacturer, factory, OEM manufacturer, vendor, samples, production, prototypes, quick turn



PCB Assembly Prototype Process



1.Solder Paste stenciling---2.Surface Mount Technology (Pick and Place)---3.Reflow Soldering---4.Inspection and Quality Control---5.Through-Hole Component Insertion (DIP Process)---6.Final Inspection and Functional Test





PCB Assembly Prototype Delivery Time



Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD



PCB Assembly Prototype Application Field



Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics.







Workshop





PCB Assembly Prototype Common packaging

PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box





Company Information



Haina lean Electronics Co., Ltd is a one-stop EMS supplier integrating PCB design, PCB manufacturing, Component sourcing and PCB assembly.

Our company was established in May 1, 2012 in Beijing. And expansion was completed in June 2016. The company is specialized in electronic products supporting processing services, mainly to undertake circuit board design, layout production, components procurement, PCB plate making, circuit board welding assembly debugging and other OEM/ODM services.



The company pursues "inclusiveness, excellence, people-oriented". Constantly innovate, take technology as the core, regard quality as life, and wholeheartedly provide customers with high-quality and high-efficiency humanized services.We are willing to serve our customers with the principle of continuous honesty & trustworthiness, pragmatism and innovation.
