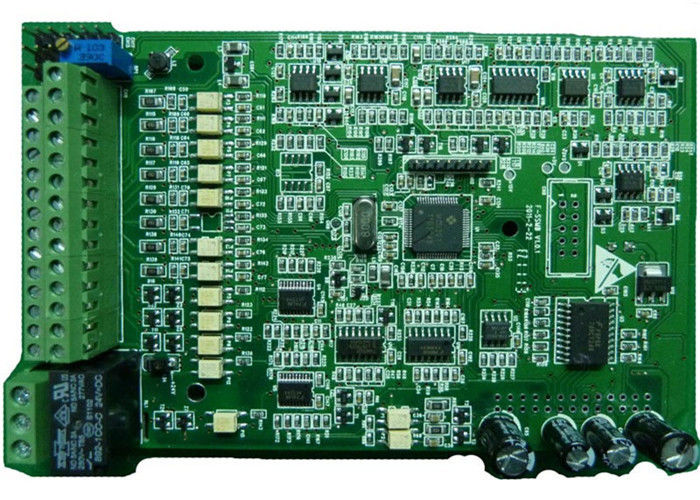

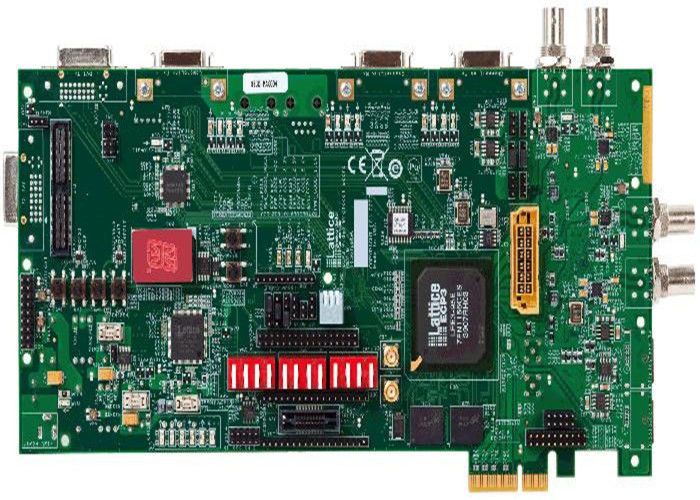

Green FR4 Rigid High Density Multilayer PCB Assembly Prototype



PCB Assembly Prototype Introduction

Prototype PCB Assembly can helps partners to make complicated designs, prepare them for assembly and testing them without having any worry about the PCB assembly workmanship. The prototype is designed, manufactured and assembled, then Testing the Prototype, you have a completed prototype. We fabricate PCB Assembly with SMT,DIP, BGA, QFP, as well as THT selective soldering.



PCB CAPABILITIES

PCBA CAPABILITIES



PCBA Capability
Material Type	Item	Min	Max
PCB	Dimension (length,width,height.mm)	50*40*0.38	600*400*4.2
	Material	FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
	Surface finish	HASL,OSP,Immersion gold,Flash Gold Finger
Components	Chip&IC	1005	55mm
	BGA Pitch	0.3mm	-
	QFP Pitch	0.3mm	-



Our SMT capabilities:



SMT Assembly: SMT provides a flexible high technology. These solutions include:

7 high-speed placement machines,

7 automatic printers with fiducial alignment,

2 X-ray machines,

BGA maintenance machines,

ICT test machines



Our DIP function:



A-8 semi-assembly production line with four wave soldering machines

1 U-shaped automatic assembly line for box-type building products with test stations

High temperature / low temperature aging test furnace B-4 for products required for aging test

With time control and temperature control

All products are 100% inspected and tested during the DIP process

Haina lean Electronics Co.,Ltd is a competitive China customize pcba for medical breathing machine OEM manufacturer, supplier and vendor, you can get quick turn customize pcba for medical breathing machine production prototypes and samples from our factory.

Hot Tags: customize pcba for medical breathing machine, China, supplier, manufacturer, factory, OEM manufacturer, vendor, samples, production, prototypes, quick turn



PCB Assembly Prototype Process



1.Solder Paste stenciling---2.Surface Mount Technology (Pick and Place)---3.Reflow Soldering---4.Inspection and Quality Control---5.Through-Hole Component Insertion (DIP Process)---6.Final Inspection and Functional Test



PCB SMT Assembly Delivery Time



Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD



PCB Assembly Prototype Application Field



Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics etc.





Workshop





Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box





FAQ



Q1:What service do you have?

A1: We provide turnkey solution including RD, PCB fabrication, SMT, PCB Assembley ,final assembly,testing and other
value-added service.

Q2:What are the main products of your PCB/PCBA services?

A2:Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy,
Metering/Measurements. Consumer Electronics.

Q3:How can we ensure our information should not let third party to see our design?

A3: We are wiling to sign NDA effect by customer side locallaw and promising to keep customers datain highconfidential level.

Q4:What does Parason need for a customized PCB order?

A4:When you place a PCB order, the customers need to provide Gerber or pcb file.If you do not have the fileinthe correct format, you can send all the details related to the products.

Q5:What will be needed for a customized PCBA order?

A5: When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list to us.

Q6:Do you have an minimum order quantity?

A6:We accept order with as low as a quantity of 1 (piece or panel)
