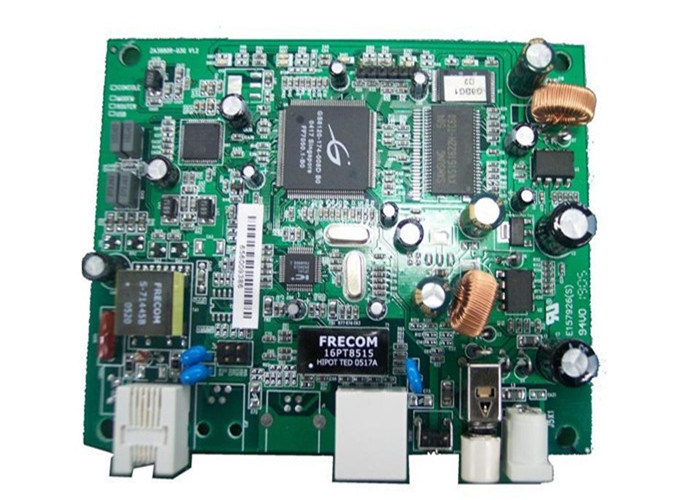

PCBA can be understood as a finished circuit board. The essence is PCB and component assembly. PCB is a printed circuit board and a support for electronic components. PCB procurement and patch processing are two different production methods.
PCBA is the abbreviation of Printed Circuit Board Assembly in English, that is to say, PCB blank board goes through SMT loading, or the entire process of DIP plug-in, referred to as PCBA, and the standard way of writing in Europe and America is PCB'A, with "'" added, this Known as the official idiom.
|1||HDI Capabilities||HDI ELIC (4+2+4)||HDI ELIC(5+2+5)|
|2||Max layer count||32L||36L|
|3||Board Thickness||Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm||Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm|
|5||Min Line Width/Space||0.035mm/0.035||0.030mm/0.030mm|
|7||Size Max Panel size||700x610mm||700x610mm|
|11||Max Aspect Ratio||10:1||10:1|
|12||Bow and Twist||0.50%||0.50%|
|13||Impedance Control Tolerance||+/-8%||+/-5%|
|14||Daily output||3,000m2 (Max capacity of equipment)||4,000m2 (Max capacity of equipment)|
|15||Surface Finishing||HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD|
|16||Raw Material||FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI|
|Material||FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC|
|Surface finish||HASL,OSP,Immersion gold,Flash Gold Finger|
PCB Design & Layout
Turn Prototype PCB Assembly
PCB Assembly Services
Printed Circuit Board Assembly PCBA
solder paste printing equipment
automatic printing equipment
60times magnifying glass
material baking equipment
X-ray welding inspection
Semi-automatic printing equipment
component counting equipment
Online AOI detector
Reflow welding equipment
Mydata welding equipment
Printed circuit boards And PCB Assembly are mainly used for many communication industry ,Aprospace ,Auto Industry ,Communication,Indutrial Control ,Medical device ,Smart Home,consumer electronics ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box
Beijing Haina lean Electronics Co.,Ltd is one of the most professional PCB manufacture in Beijing,China. With more then 10 years of development, Haina Lean Electronics turns into a first class manufacture of HDI PCB ,with production capability 4000 square meters.
Our factory is providing high quality bare PCB, PCB layout design service and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all.
We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.
Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.
The company pursues "inclusiveness, excellence, people-oriented". Constantly innovate, take technology as the core, regard quality as life, and wholeheartedly provide customers with high-quality and high-efficiency humanized services.We are willing to serve our customers with the principle of continuous honesty & trustworthiness, pragmatism and innovation.
