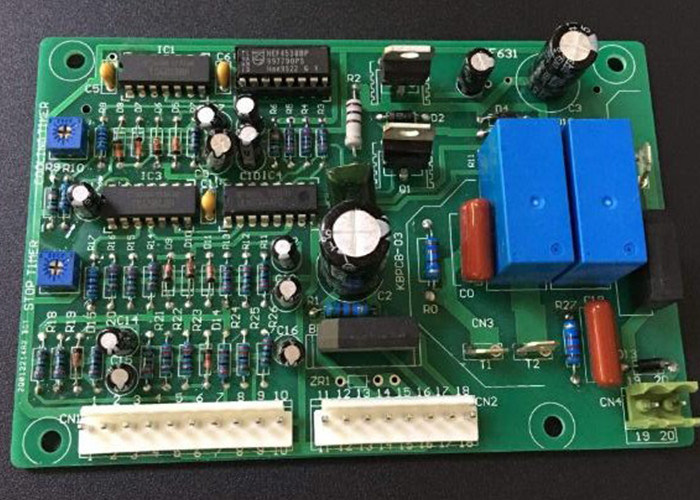

DIP PCBA BOM PCB Assembly Soldering For Industrial Control

DIP PCBA BOM PCB Assembly Soldering For Industrial Control

  • High Light

    BOM PCB Assembly Soldering

    ,

    DIP PCB Assembly Soldering

    ,

    Multilayer BOM PCB Assembly

  • Product Name
    BOM PCB Assembly
  • Layers
    Multilayer (Customer )
  • Copper Thickness
    0.3oz 1oz 2oz 3 Oz ..... 6oz
  • Min. Line Spacing
    0.030mm/0.030mm
  • Board Thickness
    0.3mm 1.2mm 1.6mm , ,,,,,, 3.5mm
  • Min. Hole Size
    Laser 0.05mm ; Mechnical 0.15
  • Solder Mask Color
    Green, Yellow, Red, Black, Blue, White, Etc
  • Material
    FR-4/Normal Tg/High Tg/Low Dk/HF FR4/ Aluminium
  • Surface Finishing
    HASL Lead Free,,HASL,OSP,ENIG,Immersion Gold
  • Application
    Consumer Electronics ,automotive Electronics , Industrial Control​ ,etc.
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS ,IPC-A ,QC080000
  • Model Number
    PCB Assembly
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

DIP PCBA BOM PCB Assembly Soldering For Industrial Control

High Tg PCB Soldering Circuit DIP PCBA BOM PCB Assembly For Industrial Control

PCB Circuit Card Assembly Manufacturing Introduction



Printed circuit board (PCB) assemblies include surface-mount technology (SMT) PCB prototypes, PCBA prototype assembly, PCB sample assembly, etc. The term prototype PCB Assembly refers to a fast prototype PCBA used to test the function of new electronic designs.

The prototype PCB assembly section of our manufacturing facility has a unique layout that allows for flexible use of both automated and manual parts-loading stations. Our engineers is qualified and experienced in producing surface-mount (SMT), through-hole (THT) and mixed-technology components and fine-pitch parts and ball grid arrays (BGAs) for high-density FR-4 PCBs .



PCB CAPABILITIES





FACTORY CAPABILITIES
No. Items 2019 2020
1 HDI Capabilities HDI ELIC (4+2+4) HDI ELIC(5+2+5)
2 Max layer count 32L 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size

Laser 0.075mm

Mechnical 0.15

Laser 0.05mm

Mechnical 0.15

5 Min Line Width/Space 0.035mm/0.035 0.030mm/0.030mm
6 Copper Thickness 1/3oz-4oz 1/3oz-6oz
7 Size Max Panel size 700x610mm 700x610mm
8 Registration Accuracy +/-0.05mm +/-0.05mm
9 Routing Accuracy +/-0.075mm +/-0.05mm
10 Min.BGA PAD 0.15mm 0.125mm
11 Max Aspect Ratio 10:1 10:1
12 Bow and Twist 0.50% 0.50%
13 Impedance Control Tolerance +/-8% +/-5%
14 Daily output 3,000m2 (Max capacity of equipment) 4,000m2 (Max capacity of equipment)
15 Surface Finishing HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI



PCBA CAPABILITIES



PCBA Capability
Material Type Item Min Max
PCB Dimension (length,width,height.mm) 50*40*0.38 600*400*4.2
Material FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
Surface finish HASL,OSP,Immersion gold,Flash Gold Finger
Components Chip&IC 1005 55mm
BGA Pitch 0.3mm -
QFP Pitch 0.3mm -



PCB Aassembly Production Process



PCB,Component sourcing ,QC ,SMT Process ,AOI ,Test ,Automatic optical inspection ,DIP Process ,Washing board ,FQC .



DIP PCBA BOM PCB Assembly Soldering For Industrial Control 0



Our WorkShop



DIP PCBA BOM PCB Assembly Soldering For Industrial Control 1

DIP PCBA BOM PCB Assembly Soldering For Industrial Control 2

DIP PCBA BOM PCB Assembly Soldering For Industrial Control 3DIP PCBA BOM PCB Assembly Soldering For Industrial Control 4



Green Red Yellow Blue PCBA Application Field



Printed circuit boards And PCB Assembly are mainly used for many telecom communication industry, medical equipments, consumer electronics ,automotive electronics , industrial control ,Military & Defense, audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.



Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



Partners



DIP PCBA BOM PCB Assembly Soldering For Industrial Control 5



Common packaging


PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box



DIP PCBA BOM PCB Assembly Soldering For Industrial Control 6



FAQ



Q1.What are needed for quoation ?

PCB :Gerber File (Protel.Power PCB ,PADs File)
PCBA: Gerber File and BOM

Q2.What file formats do you accept for production ?

Gerber file :CAM350 RS274X
PCB File:protel 99SE ,P-CAD 2001 PCB
BOM:Excel (PDF,Word ,txt)

Q3.Are my files safe ?

Your files are held in complete safety and security ,we protect the intellectual property for our customers in the whole process .All documents from customer are never shared with any third parties .

Q4.What's your MOQ ?

No Moq ,We small orders as well as mass production

Q5.Shipping Cost ?

The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other transportation services .

Q6.Can You provide fast rotating PCB ?

Yes , we can provide fast service 24 hours .

Q7.What are the services you can provide ?

One-stop contract manufacturing
A:PCB Assembly;
B:PCB Design & Layout
C:PCBA programming & functional testing;
D:Electronic components purchasing service;
E:Enclosure molding & final assembly with labels,instructions,enclosure, boxes.

Q8.Whether all PCBA s will be tested before delivery ?

Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .

Q9.Do you provide OEM service ?

Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .
