During the viral period, the frequency band of the ventilator product is lacking. As an effective means to artificially replace the autonomous ventilation function, the ventilator has been widely used for respiratory failure caused by various reasons, anesthesia respiratory management during major surgery, and respiratory support Treatment and emergency resuscitation occupy a very important position in the field of modern medicine. The ventilator is a vital medical device that can prevent and treat respiratory failure, reduce complications, save and extend the life of patients.

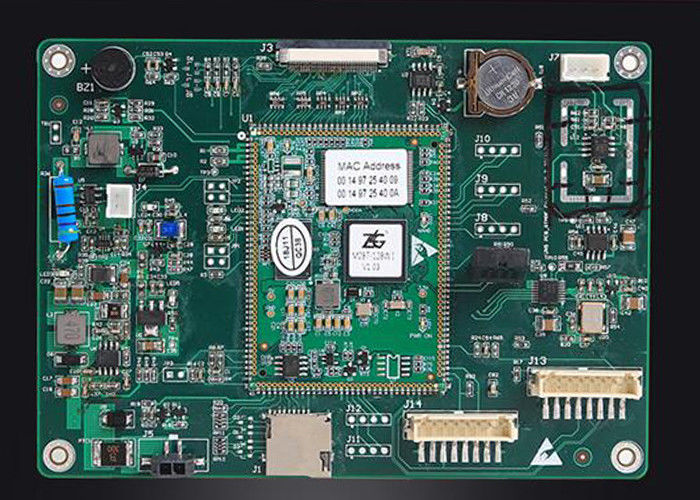

Haina lean Electronics Co.,Ltd is a competitive China customize pcba for medical breathing machine OEM manufacturer, supplier and vendor, you can get quick turn customize pcba for medical breathing machine production prototypes and samples from our factory.
|Layers||1 - 46 L (Custom )|
|Substrate||FR-4,CTI600,Tg180,,Anti CAF,Halogen-free,,High frequency,Tg170&HF|
|Max. panel size||700x610mm (Custom)|
|Board thickness||0.3 mm - 3.5 mm.|
|Copper thickness||1/3 oz. to 6 oz. (outer) (Max)|
|Aspect Ratio||10 : 1|
|Min. track width||3.0 mils(partial)|
|Min. track space||3.0mils(partial)|
|Min. S/M bridge||3mil|
|Hole plugging diameter||0.3 mm~0.55 mm.|
|Impedance tolerance||+/- 10%.|
|Color of S/M||green,white,black,red,orange,yellow,blue,purple|
|Surface treatment||OSP,HAL,HAL LF,ENIG,Hard gold,Imm Ag,Imm Sn,Peelable soldermask,Carbon ink print,Selective hard gold|
1.PCB Design & Layout 2.PCB Prototyping 3.PCB Fabrication 4.Turn Prototype PCB Assembly
5.PCB Assembly Service 6.Contract PCB Assembly 7.Trunkey PCB Assembly 8.Components sourcing,
9.Function test 10.conformal coating 11.complete assembly
Our assembly process has been designed to meet all variations of PCBs, including single- or double-sided boards, Multilayer , rigid ,flexible circuits and Mixed technology. We run both leaded and RoHS/Lead-Free Surface Mount Technology (SMT) lines as well as wave solder equipment for both RoHS and leaded processes. Our manufacturing process allows for the highest quality product through process automation, environmental controls, automatic optical inspection (AOI) and flying probe at the best competitive price.
Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.
|Product Type||Qty||Normal lead time||Quick-turn lead time|
Q1: What service do you have?
A1: We provide turnkey solution including RD, PCB fabrication, SMT, final assembly ,testing and other
Q2: What are the main products of your PCB/PCBA services?
A2: Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy,
Metering/Measurements, Consumer Electronics.
Q3: Can we inspect quality during production?
A3: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer
inspect our production process and check in house
Q4: How can we ensure our information should not let third party to see our design?
A4: We can sign NDA effect by customer side local law and promising to keep customers data in high
Q5: What does customer need for a customized PCB order?
A5: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in
the correct fomat, you can send all the details related to the products.
Q7: Does you have an minimum order quantity?
A7: We accept order with as low as a quantity of 1 (piece or panel).
Q8:what is the difference between PCB, PCBA and FPC?
A8: PCB is bare board without any components.
PCBA is the PCB through SMT or plug-in processing, welding assembly on the PCB board required electronic components, such as IC, resistor, capacitor, crystal oscillator, transformer and other electronic components, after reflow oven high temperature heating, will form the mechanical connection between components and PCB board, thus forming PCBA.
FPC generally uses Pi as base material, which is flexible and can be bent and flexed at will .
Beijing Haina lean Electronics Co.,Ltd is one of the most professional PCB manufacture in Beijing,China. With more then 10 years of development, Haina Lean Electronics turns into a first class manufacture of HDI PCB ,with production capability 4000 square meters.
Our factory is providing high quality bare PCB, PCB layout design service and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all.
We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.
Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.
The company pursues "inclusiveness, excellence, people-oriented". Constantly innovate, take technology as the core, regard quality as life, and wholeheartedly provide customers with high-quality and high-efficiency humanized services.We are willing to serve our customers with the principle of continuous honesty & trustworthiness, pragmatism and innovation.
