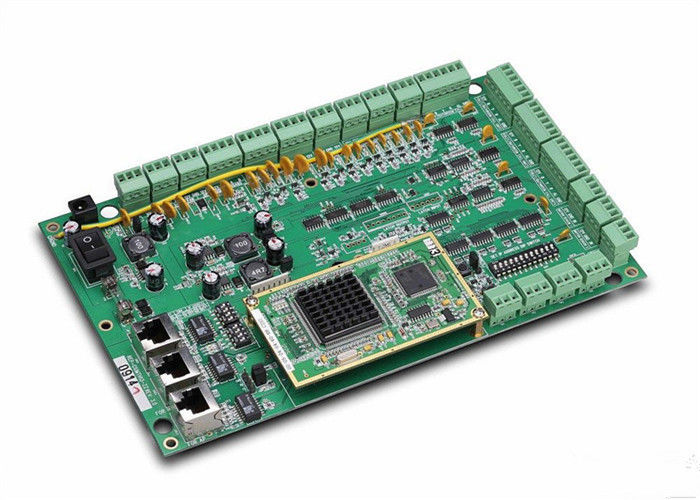

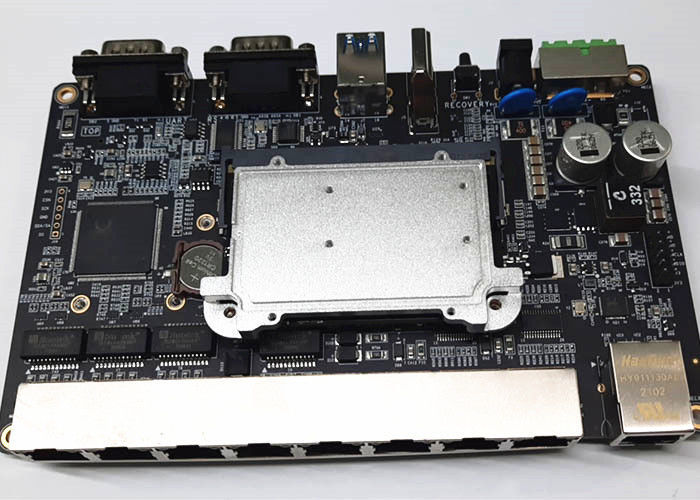

HF FR4 BGA technology Lead Free HASL prototype pcb assembly



Prototype PCB Assembly Introduction



Haina Lean can offer following service :PCB Design ,PCB Fabrication,PCB Assembly, Components Sourcing, Function Testing, Enclosure/box/finished Assembly .



The process of soldering electronic components onto bare boards is called Printed circuit board (PCB) assembly . Electronic components installed on the bare board can be through-hole ,surface mount (SMT). If the assembly has both, it is sometimes referred to as a high mix printed circuit board. PCB assembly is one part of the electronic manufacturing process. Other segments can include box assembly, programming and functional testing.



PCB CAPABILITIES



FACTORY CAPABILITIES
No.	Items	2019	2020
1	HDI Capabilities	HDI ELIC (4+2+4)	HDI ELIC(5+2+5)
2	Max layer count	32L	36L
3	Board Thickness	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4	Min.Hole Size	Laser 0.075mm Mechnical 0.15	Laser 0.05mm Mechnical 0.15
5	Min Line Width/Space	0.035mm/0.035	0.030mm/0.030mm
6	Copper Thickness	1/3oz-4oz	1/3oz-6oz
7	Size Max Panel size	700x610mm	700x610mm
8	Registration Accuracy	+/-0.05mm	+/-0.05mm
9	Routing Accuracy	+/-0.075mm	+/-0.05mm
10	Min.BGA PAD	0.15mm	0.125mm
11	Max Aspect Ratio	10:1	10:1
12	Bow and Twist	0.50%	0.50%
13	Impedance Control Tolerance	+/-8%	+/-5%
14	Daily output	3,000m2 (Max capacity of equipment)	4,000m2 (Max capacity of equipment)
15	Surface Finishing	HASL /HASL Lead Free /ENEPING /ENIG /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16	Raw Material	FR-4 / Normal Tg / High Tg/Low Dk/HF FR4/ PTEE/PI /Rogers
17	Application	Medical Products ,Office Equipment,Household Appliances,Automotive electronics, digital electronics, aerospace products, communication electronics, industrial control, elevator, high speed railway, digital TV, satellite, radar,Video processing, Gateway control ,Network devices ,etc



PCBA CAPABILITIES



PCBA Capability
Material Type	Item	Min	Max
PCB	Dimension (length,width,height.mm)	50*40*0.38	600*400*4.2
	Material	FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
	Surface finish	HASL,OSP,Immersion gold,Flash Gold Finger
Components	Chip&IC	1005	55mm
	BGA Pitch	0.3mm	-
	QFP Pitch	0.3mm	-



PCBA Assembly Process





Dust-Free Workshop



Delivery Time



Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD



PCBA Assembly Application Field





Partners





Common packaging

PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box





FAQ



Q1.What are needed for quoation ?

PCB :Gerber File (Protel.Power PCB ,PADs File)
PCBA: Gerber File and BOM

Q2.What file formats do you accept for production ?

Gerber file :CAM350 RS274X
PCB File:protel 99SE ,P-CAD 2001 PCB
BOM:Excel (PDF,Word ,txt)

Q3.Are my files safe ?

Your files are held in complete safety and security ,we protect the intellectual property for our customers in the whole process .All documents from customer are never shared with any third parties .

Q4.What's your MOQ ?

No Moq ,We accept small orders as well as mass production

Q5.Shipping Cost ?

The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other transportation services .

Q6.Can You provide fast rotating PCB ?

Yes , we can provide fast service 24 hours .

Q7.What are the services you can provide ?

One-stop contract manufacturing
A:PCB Assembly;
B:PCB Design & Layout
C:PCBA programming & functional testing;
D:Electronic components purchasing service;
E:Enclosure molding & final assembly with labels,instructions,enclosure, boxes.
Q8.Whether all PCBA s will be tested before delivery ?

Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .

Q9.Do you provide OEM service ?

Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .
