High Light
hasl lead free automotive pcba
,fr4 automotive pcba
,1.2mm automotive pcb assembly
-
Product NameAutomotive Bom Pcb Assembly
-
MaterialFR4 CEM1 CEM3 Hight TG
-
Copper Thickness1oz 2oz 3oz ...6oz
-
Max Board Size700x610mm;custom
-
Min. Line Spacing& Width0.030mm , 0.030mm
-
Board Thickness0.3mm, 1.2mm, 1.6mm,2mm .......3.5mm
-
Min. Hole SizeLaser 0.05mm ; Mechnical 0.15
-
Surface FinishingHASL,OSP,ENIG,HASL Lead Free
-
Pcb Assembly MethodSMT,THT /DIP ,BGA ,Mixed
-
Solder Mask ColorBlue.green.red.black.white.etc
-
ApplicationAutomotive Electronics,communication, Medical Equipments, Consumer Electronics
-
Quote FilePCB Design, BOM List
-
Place of OriginCHINA
-
Brand NameHNL-PCBA
-
CertificationISO9001,IS16949, ISO14001,ROHS ,IPC-A ,QC080000
-
Model NumberPCB Assembly
-
Minimum Order Quantity1 PC
-
PriceNegotiable
-
Packaging DetailsESD packaging with carton box
-
Delivery Time1-7days
-
Payment TermsT/T, Western Union, L/C, MoneyGram
-
Supply Ability10,000,000 Point /Day

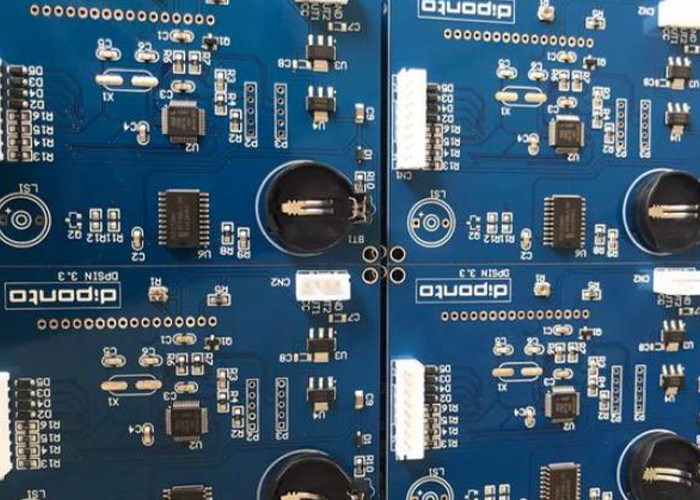

Hasl Lead Free Automotive Pcba Aoi Hdi Fr4 1.2 Mm
Hasl Lead Free Pcba Aoi Hdi Fr4 1.2 Mm Automotive Bom Pcb Assembly
PCB Assembly Introduction
The processing of PCBA is very complicated, including many important processes such as PCB manufacturing process, component procurement and inspection, SMT assembly, DIP welding, PCBA testing and so on. Among them, PCBA testing is the most critical quality control step in the entire PCBA processing. The test determines the final performance of the product. Haina Lean provides you with high-quality and assured products.
Our PCB CAPABILITIES
| FACTORY CAPABILITIES | |||
| No. | Items | 2019 | 2020 |
| 1 | HDI Capabilities | HDI ELIC (4+2+4) | HDI ELIC(5+2+5) |
| 2 | Max layer count | 32L | 36L |
| 3 | Board Thickness | Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm | Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm |
| 4 | Min.Hole Size |
Laser 0.075mm Mechnical 0.15 |
Laser 0.05mm Mechnical 0.15 |
| 5 | Min Line Width/Space | 0.035mm/0.035 | 0.030mm/0.030mm |
| 6 | Copper Thickness | 1/3oz-4oz | 1/3oz-6oz |
| 7 | Size Max Panel size | 700x610mm | 700x610mm |
| 8 | Registration Accuracy | +/-0.05mm | +/-0.05mm |
| 9 | Routing Accuracy | +/-0.075mm | +/-0.05mm |
| 10 | Min.BGA PAD | 0.15mm | 0.125mm |
| 11 | Max Aspect Ratio | 10:1 | 10:1 |
| 12 | Bow and Twist | 0.50% | 0.50% |
| 13 | Impedance Control Tolerance | +/-8% | +/-5% |
| 14 | Daily output | 3,000m2 (Max capacity of equipment) | 4,000m2 (Max capacity of equipment) |
| 15 | Surface Finishing | HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD | |
| 16 | Raw Material | FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI | |
PCBA CAPABILITIES
| PCBA Capability | |||
| Material Type | Item | Min | Max |
| PCB | Dimension (length,width,height.mm) | 50*40*0.38 | 600*400*4.2 |
| Material | FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC | ||
| Surface finish | HASL,OSP,Immersion gold,Flash Gold Finger | ||
| Components | Chip&IC | 1005 | 55mm |
| BGA Pitch | 0.3mm | - | |
| QFP Pitch | 0.3mm | - | |
PCB Assembly Application Field
Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics and automobile industry ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer etc industries.
Our Workshop
Common packaging
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box
Our services cover all industries and reach all parts of the world.
