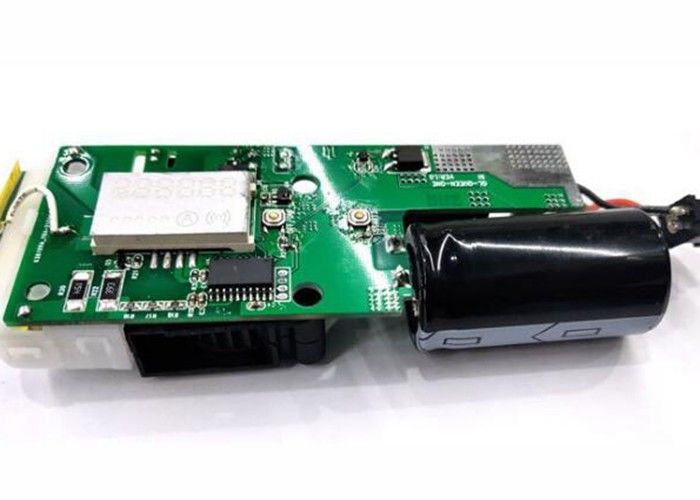

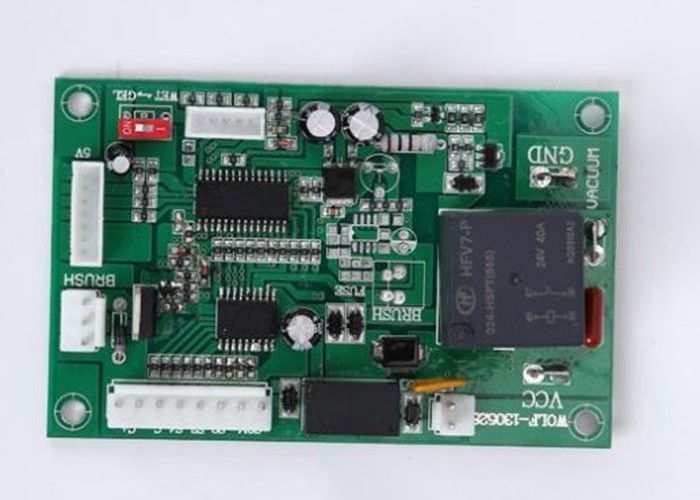

FR4 ENIG Quick Turn DIP Electronic Components PCB SMT Assembly



PCB SMT Assembly Introduction

SMT is Surface Mount Technology. We fabricate PCB Assembly with SMT,DIP, BGA, QFP, as well as THT selective soldering.

SMT assembly as an alternative to the through-hole method of PCB manufacturing, is a method of placing electronic components and circuits onto PCBs. SMT assembly has a wide range of uses. It also has a few limitations your design team should consider.



PCB CAPABILITIES

PCBA CAPABILITIES



PCBA Capability
Material Type	Item	Min	Max
PCB	Dimension (length,width,height.mm)	50*40*0.38	600*400*4.2
	Material	FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
	Surface finish	HASL,OSP,Immersion gold,Flash Gold Finger
Components	Chip&IC	1005	55mm
	BGA Pitch	0.3mm	-
	QFP Pitch	0.3mm	-



Our SMT capabilities:



SMT Assembly: SMT provides a flexible high technology. These solutions include:

7 high-speed placement machines,

7 automatic printers with fiducial alignment,

2 X-ray machines,

BGA maintenance machines,

ICT test machines



Our DIP function:



A-8 semi-assembly production line with four wave soldering machines

1 U-shaped automatic assembly line for box-type building products with test stations

High temperature / low temperature aging test furnace B-4 for products required for aging test

With time control and temperature control

All products are 100% inspected and tested during the DIP process

Haina lean Electronics Co.,Ltd is a competitive China customize pcba for medical breathing machine OEM manufacturer, supplier and vendor, you can get quick turn customize pcba for medical breathing machine production prototypes and samples from our factory.

Hot Tags: customize pcba for medical breathing machine, China, supplier, manufacturer, factory, OEM manufacturer, vendor, samples, production, prototypes, quick turn



PCB SMT Assembly Process



1.Solder Paste stenciling---2.Surface Mount Technology (Pick and Place)---3.Reflow Soldering---4.Inspection and Quality Control---5.Through-Hole Component Insertion (DIP Process)---6.Final Inspection and Functional Test



Our advantages



1.Service value Independent quotation system to quickly serve the market	2.PCB manufacturing High-tech PCB and PCB assembly production line
3.Material purchasing A team of experienced electronic component procurement engineers	4.SMT post soldering Dust-free workshop, high-end SMT patch processing





PCB SMT Assembly Delivery Time



Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD



PCB SMT Assembly Application Field



Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics etc.





Workshop





Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box
