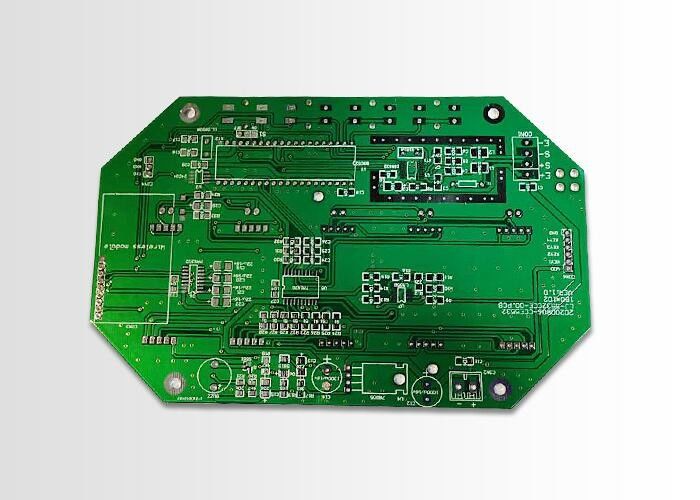

6OZ Green Soldermask ENIG Lead Free High Frequency PCB

6OZ Green Soldermask ENIG Lead Free High Frequency PCB

  • High Light

    Pb Free High Frequency PCB

    ,

    ENIG High Frequency PCB

    ,

    6OZ green pcb board

  • Product Name
    High Frequency PCB
  • Material
    FR-4/HG150-180
  • Copper Thickness
    1/3OZ,1OZ, ......6OZ
  • Min. Line Width/spacing
    0.030mm/0.030mm
  • Board Thickness
    0.3mm To 3.5mm
  • Min. Hole Size
    Laser 0.075mm; Mechnical 0.15mm
  • Surface Finishing
    HASL,ENIG,HASL Lead Free,OSP,Immersion Gold
  • PCB Assembly Method
    Mixed; SMT, DIP, THT ETC.
  • Usage
    OEM Electronics,Circuit Board Assembly
  • Type
    Customizable,High Tg Board High Frequency Rogers 5880 PCB
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS , UL, IPC-A ,QC080000
  • Model Number
    PCB Assembly 06
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

6OZ Green Soldermask ENIG Lead Free High Frequency PCB

FR-4 HASL Pb-Free Green Soldermask Enig Lead-Free High Frequency PCB



High Frequency PCB Introduction

Satellite communication growing rapidly, information products move towards high speed and high frequency. Thus developing new products always need to use high frequency substrate, satellite system, mobile telephone receiving base station and so on, these communication products must use high frequency PCB.

Produce HDI board, Fast PCB board, RF PCB board, PCBA, high frequencyPCB board ,high speed board and rigid-flex board, etc., to meet customers' various demands. PCB Boards include Single-layer, Double-layer, Multi-layer, Rigid Board, Rigid-flexible Board, Flexible Board, High Frequency Board, HDI PCB board, Aluminum Substrate etc.

All our products follow IPC class and are approved by UL, ROHS and ISO9001.

PCB CAPABILITIES


FACTORY CAPABILITIES
No. Items 2019 2020
1 HDI Capabilities HDI ELIC (4+2+4) HDI ELIC(5+2+5)
2 Max layer count 32L 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size Laser 0.075mm Laser 0.05mm
Mechnical 0.15 Mechnical 0.15
5 Min Line Width/Space 0.035mm/0.035 0.030mm/0.030mm
6 Copper Thickness 1/3oz-4oz 1/3oz-6oz
7 Size Max Panel size 700x610mm 700x610mm
8 Registration Accuracy +/-0.05mm +/-0.05mm
9 Routing Accuracy +/-0.075mm +/-0.05mm
10 Min.BGA PAD 0.15mm 0.125mm
11 Max Aspect Ratio 10:01 10:01
12 Bow and Twist 0.50% 0.50%
13 Impedance Control Tolerance +/-8% +/-5%
14 Daily output 3,000m2 (Max capacity of equipment) 4,000m2 (Max capacity of equipment)
15 Surface Finishing HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI

Our advantage



1.Service value

Independent quotation system to quickly serve the market

2.PCB manufacturing

High-tech PCB and PCB assembly production line

3.Material purchasing

A team of experienced electronic component procurement engineers

4.SMT post soldering

Dust-free workshop, high-end SMT patch processing



6OZ Green Soldermask ENIG Lead Free High Frequency PCB 0



Electronic Board Assembly Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



Application Field



Our products are widely used in the following areas:

1. communication equipment,

2. industrial control,

3.consumer electronics,

4.medical equipment,

5. aerospace,

6.light-emitting diode lighting,

7.automotive electronics etc



6OZ Green Soldermask ENIG Lead Free High Frequency PCB 1



Workshop



6OZ Green Soldermask ENIG Lead Free High Frequency PCB 26OZ Green Soldermask ENIG Lead Free High Frequency PCB 3

6OZ Green Soldermask ENIG Lead Free High Frequency PCB 4

6OZ Green Soldermask ENIG Lead Free High Frequency PCB 5



Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box



6OZ Green Soldermask ENIG Lead Free High Frequency PCB 6



Company information:



Haina Lean Electronics has been turned into a first class manufacture of HDI PCB. We are providing high quality bare PCB,PCB layout design service and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all.

Our advantages:

1. Our company has passed the ts16949:2009 quality system certification, and the processed products meet the export standards of Europe and America

2. There is no minimum order quantity limit, which supports the whole process from sample to batch.

3. A professional component procurement team, centralized procurement, to save your procurement costs, labor costs, quality costs.

4. Professional sample making: SMT samples will be delivered within 24 hours.

5. Our main customer base: automotive electronics, industrial control, security, communication, power and other high-end.



6OZ Green Soldermask ENIG Lead Free High Frequency PCB 7
