Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly

Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly

  • High Light

    ESD 2 Sided PCB Assembly

    ,

    SMT ESD 2 Sided PCB Assembly

    ,

    1.2mm ESD PCB assembly

  • Product Name
    PCB Assembly
  • Copper Thickness
    0.3oz 1oz 2oz 3 Oz ..... 6oz
  • Board Size
    Custom
  • Min. Line Spacing / Width
    0.030mm / 0.030mm
  • Board Thickness
    0.3 , 0.5 , 1.2 , 1.6 ,,,,,,, 3.5mm
  • Min. Hole Size
    Laser 0.05mm ; Mechnical 0.15
  • Solder Mask Color
    Blue.green.red.black.white.etc
  • Surface Finishing
    HASL,OSP,ENIG,HASL Lead Free,Immersion Gold
  • Material
    FR4 /Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI
  • Application
    Communication Equipment, Industrial Control, Consumer Electronics, Medical Equipment, Aerospace, Light-emitting Diode Lighting, Automotive Electronics
  • Assembly Types
    Surface Mount, Thro-hole, Mixed Technology (SMT & Thru-hole), Single Or Double Sided Placement, Conformal Coating, Shield Cover Assembly For EMI Emission Control
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS ,IPC-A ,QC080000
  • Model Number
    PCBA-01
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

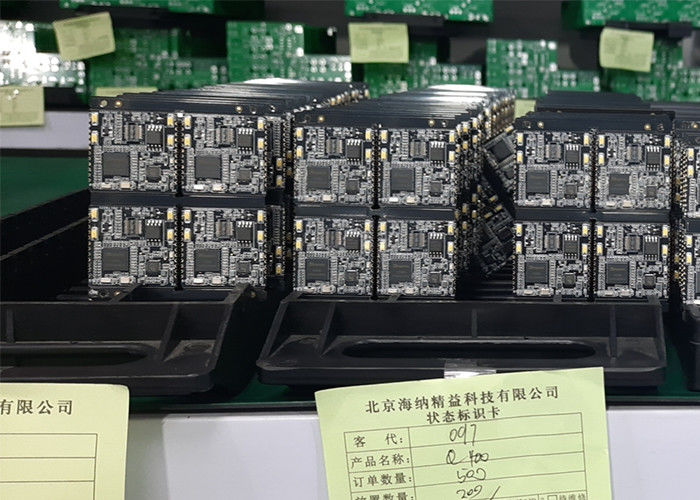

Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly

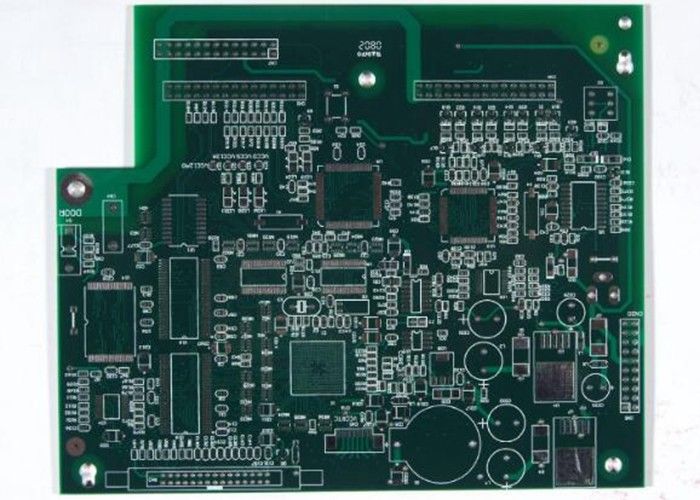

Black Solder Mask ESD Multi-Layer Immersion Tin 2 Sided PCB Assembly



PCB Assembly Introduction

We can produce and offer bulk volume printed circuit boards to meet your requirements. each PCB goes through a strict testing process, ensuring that quality is never compromised. For high-volume PCBA order, we offer competitive pricing, as well as flexible shipment plans to you.



Haina Lean fabricate PCB Assembly with SMT,DIP, BGA, QFP, as well as THT selective soldering.Our engineers is qualified and experienced in producing surface-mount (SMT), through-hole (THT) and mixed-technology components and fine-pitch parts and ball grid arrays (BGAs) for high-density FR-4 PCBs .



PCB CAPABILITIES



FACTORY CAPABILITIES
No. Items 2019 2020
1 HDI Capabilities HDI ELIC (4+2+4) HDI ELIC(5+2+5)
2 Max layer count 32L 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size

Laser 0.075mm

Mechnical 0.15

Laser 0.05mm

Mechnical 0.15

5 Min Line Width/Space 0.035mm/0.035 0.030mm/0.030mm
6 Copper Thickness 1/3oz-4oz 1/3oz-6oz
7 Size Max Panel size 700x610mm 700x610mm
8 Registration Accuracy +/-0.05mm +/-0.05mm
9 Routing Accuracy +/-0.075mm +/-0.05mm
10 Min.BGA PAD 0.15mm 0.125mm
11 Max Aspect Ratio 10:1 10:1
12 Bow and Twist 0.50% 0.50%
13 Impedance Control Tolerance +/-8% +/-5%
14 Daily output 3,000m2 (Max capacity of equipment) 4,000m2 (Max capacity of equipment)
15 Surface Finishing HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI



PCBA CAPABILITIES



PCBA Capability
Material Type Item Min Max
PCB Dimension (length,width,height.mm) 50*40*0.38 600*400*4.2
Material FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
Surface finish HASL,OSP,Immersion gold,Flash Gold Finger
Components Chip&IC 1005 55mm
BGA Pitch 0.3mm -
QFP Pitch 0.3mm -



Our advantage

Service value

Independent quotation system to quickly serve the market

PCB manufacturing

High-tech PCB and PCB assembly production line

Material purchasing

A team of experienced electronic component procurement engineers

SMT post soldering

Dust-free workshop, high-end SMT patch processing



Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 0



Why choose us?


1. Experienced: Focus on PCB And PCBA munufacturing over 10 years.
2. Professional: Expertise engineer with barrier-free English
3. Rapid delivery: On-time delivery rate reaches 98%
4.Cost effective: No excessive profits. Lower cost with same quality And service





Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 1

Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 2



Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



PCB Assembly Application Field



Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics and automobile industry ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer etc industries.



Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 3



Workshop

Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 4

Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 5Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 6Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 7



Partners



Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 8



Common packaging


PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box



Black Solder Mask ESD Immersion Tin 2 Sided PCB Assembly 9



FAQ



Q1.What are needed for quoation ?

PCB :Gerber File (Protel.Power PCB ,PADs File)
PCBA: Gerber File and BOM

Q2.What file formats do you accept for production ?

Gerber file :CAM350 RS274X
PCB File:protel 99SE ,P-CAD 2001 PCB
BOM:Excel (PDF,Word ,txt)

Q3.Are my files safe ?

Your files are held in complete safety and security ,we protect the intellectual property for our customers in the whole process .All documents from customer are never shared with any third parties .

Q4.What's your MOQ ?

No Moq ,We small orders as well as mass production

Q5.Shipping Cost ?

The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other transportation services .

Q6.Can You provide fast rotating PCB ?

Yes , we can provide fast service 24 hours .

Q7.What are the services you can provide ?

One-stop contract manufacturing
A:PCB Assembly;
B:PCB Design & Layout
C:PCBA programming & functional testing;
D:Electronic components purchasing service;
E:Enclosure molding & final assembly with labels,instructions,enclosure, boxes.
Q8.Whether all PCBA s will be tested before delivery ?

Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .

Q9.Do you provide OEM service ?

Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .

Company information



Beijing Haina lean Electronics Co.,Ltd is one of the most professional PCB manufacture in Beijing,China. With more then 10 years of development, Haina Lean Electronics turns into a first class manufacture of HDI PCB ,with production capability 4000 square meters.

Our factory is providing high quality bare PCB, PCB layout design service and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all.



We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.

Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.



The company pursues "inclusiveness, excellence, people-oriented". Constantly innovate, take technology as the core, regard quality as life, and wholeheartedly provide customers with high-quality and high-efficiency humanized services.We are willing to serve our customers with the principle of continuous honesty & trustworthiness, pragmatism and innovation.
