High Light
FR4 Automated PCB Assembly
,ENIG Automated PCB Assembly
,4oz Custom PCB Assembly
-
Product NameAutomotive PCBA
-
Layers1-36 Layers (Custom)
-
Copper Thickness0.3oz-6oz
-
Min. Line Spacing0.030mm/0.030mm
-
Board Thickness0.3-3.5mm
-
Min. Hole SizeLaser 0.05mm ; Mechnical 0.15
-
Solder Mask ColorGreen, White,Black. Blue(Customized)
-
MaterialFR4 /Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI
-
Surface FinishingHASL,OSP,ENIG,HASL Lead Free,Immersion Gold
-
ApplicationCommunication Industry, Power, Security, Optoelectronics, Industrial Control, Medical Equipments, Consumer Electronics And Automobile Industry Etc Field.
-
Place of OriginCHINA
-
Brand NameHNL-PCB
-
CertificationISO9001,IS16949, ISO14001,ROHS ,IPC-A ,QC080000
-
Model NumberAutomotive PCBA
-
Minimum Order Quantity1 PC
-
PriceNegotiable
-
Packaging DetailsESD packaging with carton box
-
Delivery Time1-7days
-
Payment TermsT/T, Western Union, L/C, MoneyGram
-
Supply Ability10,000,000 Point /Day

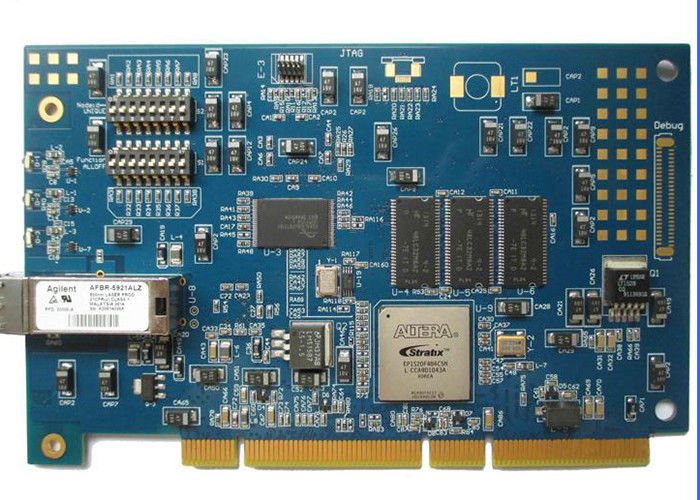

Customized Finger Gold FR4 ENIG Automated PCB Assembly
Customized Finger Gold Fr4 ENIG Surface Automotive PCBA
Automotive PCBA Introduction
The automotive PCB Assembly board automatically stops the input signals of various sensors in accordance with a predetermined program; and then outputs signals to the actuators to control the operation of the vehicle.
Haina lean Electronics Co.,Ltdis a competitive China automotive driver circuit board prototype OEM manufacturer, supplier and vendor, you can get quick turn automotive driver circuit board prototype production prototypes and samples from our factory.
Factory Capabilities
| Layers | 1 - 36 L (Custom ) |
| Substrate | FR-4,Normal Tg ,High Tg FR-4,Tg180,,Anti CAF,Halogen-free,,High frequency,Tg170&HF,Low Dk,HF FR4,PTEE,PI,ceramic plate |
| Max. panel size | 700x610mm (Custom) |
| Board thickness | 0.3 mm - 3.5 mm. |
| Copper thickness | 1/3 oz. to 6 oz. (outer) (Max) |
| Hole | > 0.15mm. |
| Aspect Ratio | 10 : 1 |
| Min. track width | 3.0 mils(partial) |
| Min. track space | 3.0mils(partial) |
| Min. S/M bridge | 3mil |
| Hole plugging diameter | 0.15 mm~0.55 mm. |
| Impedance tolerance | +/- 10%. |
| Color of S/M | green,white,black,red,orange,yellow,blue,purple |
| Surface treatment | OSP,HAL,HAL LF,ENIG,Hard gold,Imm Ag,Imm Sn,Peelable soldermask,Carbon ink print,Selective hard gold |
PCBA Craftsmanship
Our assembly process has been designed to meet all variations of PCBs, including single- or double-sided boards, Multilayer , rigid ,flexible circuits and Mixed technology. We run both leaded and RoHS/Lead-Free Surface Mount Technology (SMT) lines as well as wave solder equipment for both RoHS and leaded processes. Our manufacturing process allows for the highest quality product through process automation, environmental controls, automatic optical inspection (AOI) and flying probe at the best competitive price.
Our service
1.PCB Design & Layout 2.PCB Prototyping 3.PCB Fabrication 4.Turnkey Prototype PCB Assembly
5.PCB Assembly Service 6.Contract PCB Assembly 7.Trunkey PCB Assembly 8.Components sourcing
9.Function test 10.conformal coating 11.complete assembly
Delivery Time
| Prototype PCB | Batch | Prototype | Expedited |
| Double sides | 9 Days | 5 Days | 45h |
| Four-layer | 10 Days | 5 Days | 3 Days |
| Six-layer | 12 Days | 6 Days | 3 Days |
| Eight-layer | 12 Days | 7 Days | 4 Days |
| Ten-layer | 14 Days | 10 Days | 4Days |
| Twelve-layer | 14 Days | 10 Days | 5 Days |
| Fourteen-layer | 16 Days | 12Days | 6 Days |
| Sixteen-layer | 16 Days | 12 Days | 6 Days |
| Eighteen-layer | 18 Days | 14 Days | 6 Days |
| Twenty-layer | 18 Days | 14 Days | 10 Days |
| Twenty two-layer | 20 Days | 14 Days | 10 Days |
| Twenty four-layer | 20 Days | 14 Days | 10 Days |
| Twenty six-layer | 20 Days | 14 Days | 10 Days |
| Twenty eight-layer | 20 Days | 14 Days | 10 Days |
PCBA Application Field
Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics ,automotive electronics , Elevator,audio and video, optoelectronics, robotics, hydroelectric power, Elevator,aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.
Our Workshop
Testing service
Haina lean Electronics provides custom test service according to client's requirements and products.
Usually Haina lean Electronics Co.,Ltd PCBA Tech offers a full range of testing service. Including:
1. AOI(Automatic Optical Inspection)
2. Function Testing
3. In Circuit Testing
4. Testing Jig
5. Testing Service
6. X-Ray for BGA Testing
7. Printing Solder Paste Test
Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.
Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested.
Flash testing and earth bonding tests can also be undertaken where required.
Partners
Common packaging
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box
Company Infromation
Beijing Haina lean Electronics Co.,Ltd is one of the most professional PCB manufacture in Beijing,China. With more then 10 years of development, Haina Lean Electronics turns into a first class manufacture of HDI PCB ,with production capability 4000 square meters.
Our factory is providing high quality bare PCB, PCB layout design service and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all.
We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.
Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.
Our services cover all industries and reach all parts of the world.
