ENIG FR4 High Density Electronic Turnkey PCB Assembly

ENIG FR4 High Density Electronic Turnkey PCB Assembly

  • High Light

    ENIG Turnkey PCB Assembly

    ,

    Electronic Turnkey PCB Assembly

    ,

    FR4 Electronics Assembly Services

  • Product Name
    Turnkey PCB Assembly
  • Material
    Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free
  • Copper Thickness
    1/3OZ, 0.5OZ, ......6OZ
  • Max Board Size
    700x610mm, OR Custom
  • Min. Line Spacing
    0.030mm
  • Board Thickness
    3mm
  • Min. Hole Size
    Laser 0.05mm ; Mechnical 0.15mm
  • Number Of Layers
    1-48layers
  • Solder Mask Color
    Green.Blue.red.black.white.etc
  • Pcb Assembly Method
    Mixed, BGA, SMT, Through-hole Etc.
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS ,UL, IPC-A ,QC080000
  • Model Number
    PCB Assembly 07
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

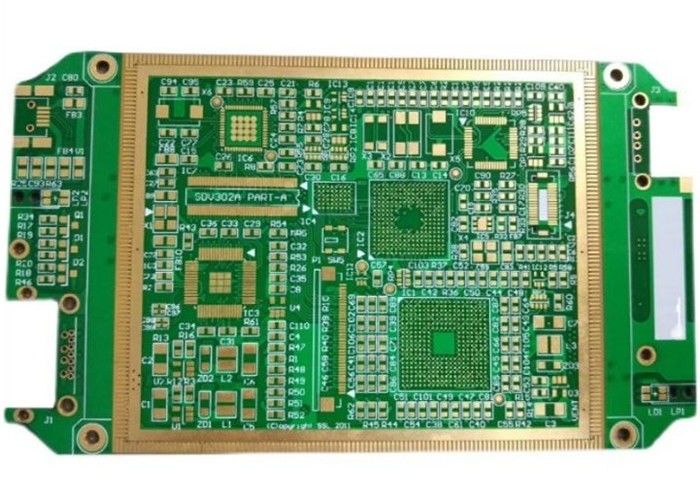

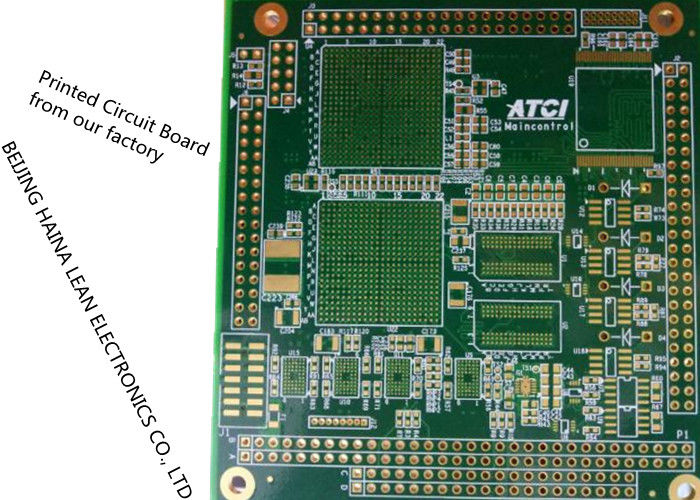

ENIG FR4 High Density Electronic Turnkey PCB Assembly

ENIG FR4 High Density Multilayer Electronic Turnkey PCB Assembly



Turnkey PCB Assembly Introduction



Providing turnkey PCB assembly services means that the provider will handle all the task including components or parts procurement,  manufacturing, assembly and final delivery.
With turnkey PCB services, you can rely on us to take care of everything from start to the final delivery process.



PCB CAPABILITIES



FACTORY CAPABILITIES
No. Items 2019 2020
1 HDI Capabilities HDI ELIC (4+2+4) HDI ELIC(5+2+5)
2 Max layer count 32L 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size

Laser 0.075mm

Mechnical 0.15

Laser 0.05mm

Mechnical 0.15

5 Min Line Width/Space 0.035mm/0.035 0.030mm/0.030mm
6 Copper Thickness 1/3oz-4oz 1/3oz-6oz
7 Size Max Panel size 700x610mm 700x610mm
8 Registration Accuracy +/-0.05mm +/-0.05mm
9 Routing Accuracy +/-0.075mm +/-0.05mm
10 Min.BGA PAD 0.15mm 0.125mm
11 Max Aspect Ratio 10:1 10:1
12 Bow and Twist 0.50% 0.50%
13 Impedance Control Tolerance +/-8% +/-5%
14 Daily output 3,000m2 (Max capacity of equipment) 4,000m2 (Max capacity of equipment)
15 Surface Finishing HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI


Our advantageS



Service value

Independent quotation system to quickly serve the market



PCB manufacturing

High-tech PCB and PCB assembly production line



Material purchasing

A team of experienced electronic component procurement engineers



SMT post soldering

Dust-free workshop, high-end SMT patch processing





ENIG FR4 High Density Electronic Turnkey PCB Assembly 0

ENIG FR4 High Density Electronic Turnkey PCB Assembly 1



Turnkey PCB Assembly Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



Turnkey PCB Assembly Application Field



Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics.



ENIG FR4 High Density Electronic Turnkey PCB Assembly 2



Workshop



ENIG FR4 High Density Electronic Turnkey PCB Assembly 3ENIG FR4 High Density Electronic Turnkey PCB Assembly 4

ENIG FR4 High Density Electronic Turnkey PCB Assembly 5



Common packaging





1.Inner:  PCB: Vacuum Packing;  PCBA: ESD Packing
2. Then standard export carton packing
3. Also can be Customized package.



ENIG FR4 High Density Electronic Turnkey PCB Assembly 6



FAQ



1.What are needed for quotation?
PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ......)
PCBA: PCB information, BOM, (Testing documents...)

2. What file formats do you accept for production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

3.Are my files safe?
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third party.

4.MOQ?
There is no MOQ .We can flexibly handle small and mass production.

5.Shipping Cost ?

The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other transportation services .

6.How to ensure high-quality production?
The process is strictly controlled under ISO 9001:2015 standards.
Most of our advanced equipment and tools are imported from abroad. Such as Flying Probe, X-ray Inspection, AOI (Automated Optical Inspector) and ICT (in-circuit testing).
We have a very professional QC team.

Q7.What are the services you can provide ?

One-stop contract manufacturing
A:PCB Assembly;
B:PCB Design & Layout
C:PCBA programming & functional testing;
D:Electronic components purchasing service;
E:Enclosure molding & final assembly with labels,instructions,enclosure, boxes.

Q8.Whether all PCBA s will be tested before delivery ?

Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .

Q9.Do you provide OEM service ?

Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .
