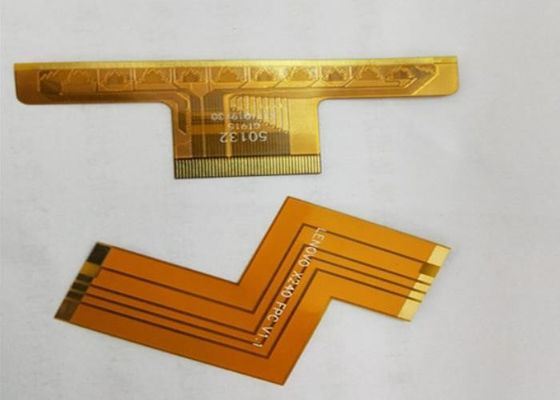

Flex boards can be used as connectors, and as full circuits assembled with components. And yes it can hold the soldering heat moreover it can stand way more than rigid ones with high temperature based on the used film material type.
Standard PCB service refers to full feature printed circuit board manufacturing service. With 10+ years' experience in PCB fabrication, we have handled hundreds of thousands of PCB projects, and covered almost all kinds of substrate materials including FR4, Aluminum, Rogers, etc. Our factory is the first class manufacturer of HDI PCB , and undertake various board PCB services, including 1-36, HDI, thick copper layer, rigid flex, high frequency, Rogers+FR-4 mixed medium volume, lamination, buried aluminum, copper substrate, plate making proofing or quick expedited PCB proofing.
All our products follow IPC class and are approved by UL, ROHS and ISO9001.
Flex PCB can be multi-layer just like the usual rigid PCB.
The Flex PCB using sampples are unlimited, the importance of this technology is not only thought that it is only good for connectors and screen panels.
As for using flex PCB as connectors, it could be a cost effective way compared to rigid ones connected with wires. This is because connecting 2 PCBs together may require a special harness cable or connector desined which will add additional steps in assembly process and more cost for testing and assembly then.
|1||HDI Capabilities||HDI ELIC (4+2+4)||HDI ELIC(5+2+5)|
|2||Max layer count||32L||36L|
|3||Board Thickness||Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm||Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm|
|4||Min.Hole Size||Laser 0.075mm||Laser 0.05mm|
|Mechnical 0.15mm||Mechnical 0.15mm|
|5||Min Line Width/Space||0.035mm/0.035mm||0.030mm/0.030mm|
|7||Size Max Panel size||700x610mm||700x610mm|
|11||Max Aspect Ratio||10:1||10:1|
|12||Bow and Twist||0.50%||0.50%|
|13||Impedance Control Tolerance||+/-8%||+/-5%|
|14||Daily Output||3,000m2 (Max capacity of equipment)||4,000m2 (Max capacity of equipment)|
|15||Surface Finishing||ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD|
|16||Raw Material||FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI|
Products are mainly exported to Europe and USA;
Our customers spread over more than 80 countries;
Products are widely used in various industries.
Multilayer PCB Craftsmanship
Wet process,Dry process
FOR MULTILAYER MANUFACTURE PROCESS:Laminate cut, scrubbing, Image transfer, internal layer, Exposure, Developing, ETCHING, black / brown oxygen, lay up, Laminating, Drilling, scrubbing, Plated through hole, PTH panel plating, pattern plating (plated resist), Etching, Inspection, Printing solder mask, Exposure, Developing, Hot Cured, Hot Air Leveling, IMMERSION GOLD, Printing legend ink (silkscreen printing), Hot Cured, Routing, punch, Bare board testing, Final Inspection, Packing, Delivery
