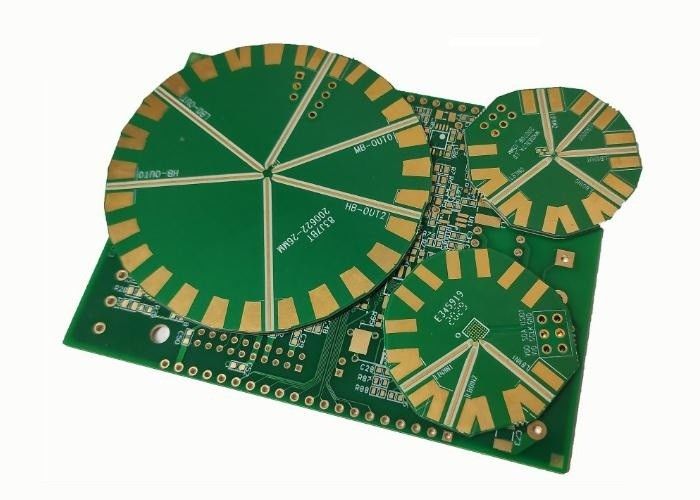

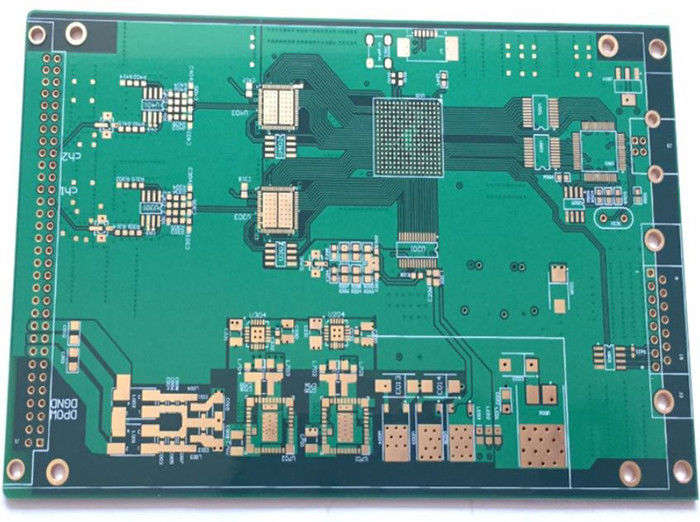

HALS High Tg Multilayer High Frequency PCB Material FR4

HALS High Tg Multilayer High Frequency PCB Material FR4

  • High Light

    Multilayer High Frequency PCB

    ,

    high frequency PCB FR4

    ,

    High Tg PCB Material FR4

  • Product Name
    HALS High Tg FR-4 Material Multilayer High Frequency PCB
  • Material
    FR-4
  • Layers
    1-36layers
  • Copper Thickness
    1/3oz-6oz
  • Min. Line Spacing
    0.030mm/0.030mm
  • Board Thickness
    0.3.0.6.1.2 1.6 ......3.5mm
  • Min. Line Width
    0.03mm
  • Min. Hole Size
    Laser 0.05mm ; Mechnical 0.15
  • Surface Finishing
    HASL,OSP,ENIG,HASL Lead Free,Immersion Gold
  • Base Material
    High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic
  • Solder Mask Color
    Green, White,Black. Blue(Customized)
  • Acceptable File
    Acceptable File,Protel,PADS,POWERPCB,AutoCAD,ORCAD
  • Service
    PCB/PCBA/Circuit Board/SMT/DIP PCBA Layout And Design
  • Craftsmanship
    HASL,HASL PB FREE, Immersion Gold/Tin/Silver, Gold Finger Plating OSP,Immersion Gold + OSP
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCB
  • Certification
    ISO9001,IS16949, ISO14001,ROHS ,IPC-A ,QC080000
  • Model Number
    PCB 05
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

HALS High Tg Multilayer High Frequency PCB Material FR4

HALS High Tg FR-4 Material Multilayer High Frequency PCB



High Frequency PCB Introduction



Satellite communication growing rapidly, information products move towards high speed and high frequency. Thus developing new products always need to use high frequency substrate, satellite system, mobile telephone receiving base station and so on, these communication products must use high frequency PCB.

Haina lean Electronics Co., Ltd produce HDI board, Fast PCB board, RF PCB board, PCBA, high frequencyPCB board ,high speed board and rigid-flex board, etc., to meet customers' various demands.

Standard PCB service refers to full feature printed circuit board manufacturing service. With 10+ years' experience in PCB fabrication, we have handled hundreds of thousands of PCB projects, and covered almost all kinds of substrate materials including FR4, Aluminum, Rogers, etc.  Our factory is the first class manufacturer of HDI PCB , and undertake various board PCB services, including 1-36, HDI, thick copper layer, rigid flex, high frequency, Rogers+FR-4 mixed medium volume, lamination, buried aluminum, copper substrate, plate making proofing or quick expedited PCB proofing.



PCB Boards include Single-layer, Double-layer, Multi-layer, Rigid Board, Rigid-flexible Board, Flexible Board, High Frequency Board, HDI PCB board, Aluminum Substrate etc.



All our products follow IPC class and are approved by UL, ROHS and ISO9001.



Basic Data/Information



The high frequency of electronic equipment is the development trend, especially in the development of wireless networks, satellite communications. Information products are moving towards high-speed and high-frequency , And communication products are moving towards the standardization of voice, video and data for wireless transmission with large capacity and high speed. Therefore, the development of a new generation of products requires high-frequency substrates. Communication products such as satellite systems and mobile phone receiving base stations must use high-frequency circuit boards. In the next few years, they will inevitably develop rapidly, and high-frequency substrates will be in large demand.



The features of high frequency PCB as following:

1. DK should be small and stable enough, usually the smaller the better, high DK may lead to signal transmission delay.

2. DF should be small, which mainly affect quality of signal transmission, the smaller DF could make smaller signal wastage accordingly.

3. The thermal expansivity should be the same with copper foil as much as possible, because the difference will lead to copper foil separated in the changes of cold and heat.

4. Water absorptivity must be low, high water absorptivity will affect DK and DF when in the wet environment.

5. Heat resisting property, chemistry resisting, impact endurance, peel off resisting must be good.

Generally speaking, high frequency can be defined as frequency above 1GHz. Currently, polyfluortetraethylene(PTFE) material is widely used in high frequency PCB manufacturing, it's also called Teflon, which frequency is normally above 5GHz. In addition, FR4 or PPO substrate can be used to the product frequency among 1GHz~10GHz.



FACTORY CAPABILITIES
No. Items 2019 2020
1 HDI Capabilities HDI ELIC (4+2+4) HDI ELIC(5+2+5)
2 Max layer count 32L 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size Laser 0.075mm Laser 0.05mm
Mechnical 0.15mm Mechnical 0.15mm
5 Min Line Width/Space 0.035mm/0.035mm 0.030mm/0.030mm
6 Copper Thickness 1/3oz-4oz 1/3oz-6oz
7 Size Max Panel size 700x610mm 700x610mm
8 Registration Accuracy +/-0.05mm +/-0.05mm
9 Routing Accuracy +/-0.075mm +/-0.05mm
10 Min.BGA PAD 0.15mm 0.125mm
11 Max Aspect Ratio 10:1 10:1
12 Bow and Twist 0.50% 0.50%
13 Impedance Control Tolerance +/-8% +/-5%
14 Daily Output 3,000m2 (Max capacity of equipment) 4,000m2 (Max capacity of equipment)
15 Surface Finishing ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI



Market Success:
Products are mainly exported to Europe and USA;
Our customers spread over more than 80 countries;
Products are widely used in various industries.



Multilayer PCB Craftsmanship



PCB Process
Wet process,Dry process
FOR MULTILAYER MANUFACTURE PROCESS:Laminate cut, scrubbing, Image transfer, internal layer, Exposure, Developing, ETCHING, black / brown oxygen, lay up, Laminating, Drilling, scrubbing, Plated through hole, PTH panel plating, pattern plating (plated resist), Etching, Inspection, Printing solder mask, Exposure, Developing, Hot Cured, Hot Air Leveling, IMMERSION GOLD, Printing legend ink (silkscreen printing), Hot Cured, Routing, punch, Bare board testing, Final Inspection, Packing, Delivery



HALS High Tg Multilayer High Frequency PCB Material FR4 0


HALS High Tg Multilayer High Frequency PCB Material FR4 1



Our service



Electronic Manufacturing Service

PCB Electronic Design
PCB Layout Service
PCB Supplier & Quality Inspection Service

PCBA Components Sourcing

PCB Assembly process service

HALS High Tg Multilayer High Frequency PCB Material FR4 2



Delivery Time



Prototype PCB Batch Prototype Expedited
Double sides 9 Days 5 Days 45h
Four-layer 10 Days 5 Days 3 Days
Six-layer 12 Days 6 Days 3 Days
Eight-layer 12 Days 7 Days 4 Days
Ten-layer 14 Days 10 Days 4Days
Twelve-layer 14 Days 10 Days 5 Days
Fourteen-layer 16 Days 12Days 6 Days
Sixteen-layer 16 Days 12 Days 6 Days
Eighteen-layer 18 Days 14 Days 6 Days
Twenty-layer 18 Days 14 Days 10 Days
Twenty two-layer 20 Days 14 Days 10 Days
Twenty four-layer 20 Days 14 Days 10 Days
Twenty six-layer 20 Days 14 Days 10 Days
Twenty eight-layer 20 Days 14 Days 10 Days



High Frequency PCB Application Field

Such as communication equipment, automotive electronics, instrumentation, global positioning system, computer, MP4, power supply, home appliances, etc.



HALS High Tg Multilayer High Frequency PCB Material FR4 3



Workshop


HALS High Tg Multilayer High Frequency PCB Material FR4 4HALS High Tg Multilayer High Frequency PCB Material FR4 5HALS High Tg Multilayer High Frequency PCB Material FR4 6



Testing service



1. Manual visual inspection of PCB board
2. PCB board online test
3. PCB board function test
4. AOI (Automatic optical inspection)
5. Automatic X-ray inspection
6. Laser detection system
7. Size detection

Above is the PCB testing service.


Haina lean Electronics provides custom test service according to client's requirements and products.
Usually Haina lean Electronics Co.,Ltd PCBA Tech offers a full range of testing service. Including:
1. AOI(Automatic Optical Inspection)
2. Function Testing
3. In Circuit Testing
4. Testing Jig
5. Testing Service
6. X-Ray for BGA Testing
7. Printing Solder Paste Test
Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.
Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested.
Flash testing and earth bonding tests can also be undertaken where required.



Partners


HALS High Tg Multilayer High Frequency PCB Material FR4 7


Common packaging


PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box

HALS High Tg Multilayer High Frequency PCB Material FR4 8


Why choose us?



Welcome to visit our factory, Haina lean Electronics Co., Ltd.
1. Experienced: Focus on PCB And PCBA munufacturing over 10 years.
2. Professional: Expertise engineer with barrier-free English
3. Rapid delivery: On-time delivery rate reaches 98%
4.Cost effective: No excessive profits. Lower cost with same quality And service


FAQ

Q1.

What's your MOQ ?
No Moq ,We accept small orders as well as mass production.



Q2.

For small quantity orders, can you produce prototype PCB?

Haina lean Electronics Co., has the capability to produce circuit boards in any amount.

Q3.

Can You provide fast rotating PCB ?
Yes , we can provide fast service 24 hours .

Q4.

What are the services you can provide ?
One-stop contract manufacturing
PCB board, PCB Design & Layout, PCB Assembly, PCBA programming & functional testing, Electronic components purchasing service,              Enclosure molding & final assembly with labels,instructions,enclosure, boxes.


Q5.

Whether all PCBA s will be tested before delivery ?
Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .

Q6.

Do you provide OEM service ?
Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .



Q7.

Shipping Cost ?
The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other          transportation services .



Q8.

Do you accept process materials supplied by clients?
Yes, we can provide component source, and we also accept component from client. OEM and ODM orders are accepted.

Company Information

Haina lean Electronics Co., Ltd is a one-stop EMS supplier integrating PCB design, PCB manufacturing, Component sourcing and PCB assembly.
Our company was established in May 1, 2012 in Beijing. And expansion was completed in June 2016. The company is specialized in electronic products supporting processing services, mainly to undertake circuit board design, layout production, components procurement, PCB plate making, circuit board welding assembly debugging and other OEM/ODM services. A professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes. Haina lean Electronics is responsible for overseas business development.With high quality and on-time delivery products we won the market's wide acclaim. We are continuing to focus on customer satisfaction, along with "high quality "and "fast delivery", become a PCB service provider worthy of customer trust. The company pursues "inclusiveness, excellence, people-oriented".

Our customers are from over more than 80 countries. At present, the main cooperation industries are automotive electronics, communications, audio and video, optoelectronics, robotics, hydroelectric power, medical care, aerospace, education, radio frequency, power supply, printer etc industries.
