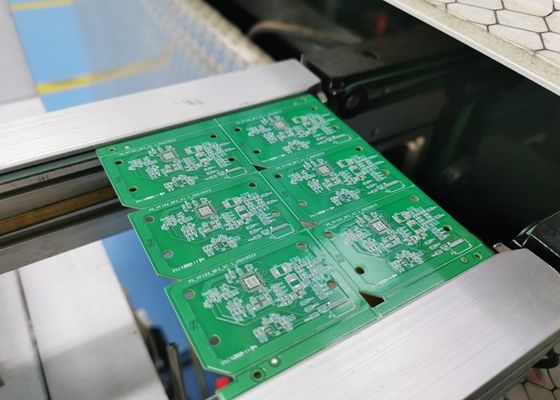

Green High Tg Hdi High Density Multilayer Printed Circuit Boards
-
High Light
high tg multilayer printed circuit boards
,hdi multilayer printed circuit boards
,high density hdi printed circuit boards
-
Product NameGreen High Tg HDI High-Density Multilayer Printed Circuit Boards
-
Copper Thickness0.3oz 1oz 2oz 3 Oz ..... 6oz
-
LayersMulti-layer ,Double-side,Customized
-
Min. Line Spacing0.030mm/0.030mm
-
Board Thickness0.3.0.6.1.2 1.6 ......3.5mm
-
Min. Hole SizeLaser 0.05mm ; Mechnical 0.15
-
Solder Mask ColorGreen, White,Black. Blue(Customized)
-
ServiceMulti-layer Boards,high-frequency Boards, HDI,high Tg Thick Copper Foil Boards, Metal Base (core) Boards, Plane Winding Boards, Mixed Dielectric Boards, Rigid-flex Boards,
-
CraftsmanshipHASL，HASL PB FREE，Immersion Gold/Tin/Silver， Gold Finger Plating OSP，Immersion Gold + OSP
-
ApplicationImage Processing ,video Processing ,communication Solutions ,automotive Electronics , Industry Control ,Medical
-
Place of OriginCHINA
-
Brand NameHNL-PCB
-
CertificationISO9001,IS16949, ISO14001,ROHS ,IPC-A ,QC080000
-
Model NumberPCB 01
-
Minimum Order Quantity1 PC
-
PriceNegotiable
-
Packaging DetailsESD packaging with carton box
-
Delivery Time1-7days
-
Payment TermsT/T, Western Union, L/C, MoneyGram
-
Supply Ability10,000,000 Point /Day
Green High Tg Hdi High Density Multilayer Printed Circuit Boards
Green High Tg HDI High-Density Multilayer Printed Circuit Boards
FR4 Printed Circuit Board Introduction
Beijing Haina Lean Technology Co., Ltd. is a manufacturing enterprise specializing in high-density multilayer printed boards, special boards, prototypes and small and medium batches.
Our PCB Board include: multi-layer boards,high-frequency boards, HDI,high Tg thick copper foil boards, metal base (core) boards, plane winding boards, mixed dielectric boards, rigid-flex boards,special substrates, and various customized specific requirements Printed circuit board (PCB ).
PCB & PCBA are widely used in high-tech fields such as communications, Image Processing ,video Processing , ,automotive Electronics , Industry Control ,computer networks, science and education,medical treatment, aerospace .
PCB Capabilities
| FACTORY CAPABILITIES | |||
| No. | Items | 2019 | 2020 |
| 1 | HDI Capabilities | HDI ELIC (4+2+4) | HDI ELIC(5+2+5) |
| 2 | Max layer count | 32L | 36L |
| 3 | Board Thickness | Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm | Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm |
| 4 | Min.Hole Size | Laser 0.075mm | Laser 0.05mm |
| Mechnical 0.15mm | Mechnical 0.15mm | ||
| 5 | Min Line Width/Space | 0.035mm/0.035mm | 0.030mm/0.030mm |
| 6 | Copper Thickness | 1/3oz-4oz | 1/3oz-6oz |
| 7 | Size Max Panel size | 700x610mm | 700x610mm |
| 8 | Registration Accuracy | +/-0.05mm | +/-0.05mm |
| 9 | Routing Accuracy | +/-0.075mm | +/-0.05mm |
| 10 | Min.BGA PAD | 0.15mm | 0.125mm |
| 11 | Max Aspect Ratio | 10:1 | 10:1 |
| 12 | Bow and Twist | 0.50% | 0.50% |
| 13 | Impedance Control Tolerance | +/-8% | +/-5% |
| 14 | Daily Output | 3,000m2 (Max capacity of equipment) | 4,000m2 (Max capacity of equipment) |
| 15 | Surface Finishing | ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD | |
| 16 | Raw Material | FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI | |
FR4 PCB Craftsmanship
Immersion gold ,Lead-free HASL,OSP,etc.
Our service
| Electronic Manufacturing Service | PCB Electronic Design |
| PCB Electronic Design | PCB Layout Service |
| PCB Assembly process service | PCBA Components Sourcing |
FR4 Printed Circuit Board Application Field
Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.
Workshop
Testing service
1. Manual visual inspection of PCB board
2. PCB board online test
3. PCB board function test
4. AOI (Automatic optical inspection)
5. Automatic X-ray inspection
6. Laser detection system
7. Size detection
Above is the PCB testing service.
Haina lean Electronics provides custom test service according to client's requirements and products.
Usually Haina lean Electronics Co.,Ltd PCBA Tech offers a full range of testing service. Including:
1. AOI(Automatic Optical Inspection)
2. Function Testing
3. In Circuit Testing
4. Testing Jig
5. Testing Service
6. X-Ray for BGA Testing
7. Printing Solder Paste Test
Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.
Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested.
Flash testing and earth bonding tests can also be undertaken where required.
Partners
Common packaging
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box
Company Information
Beijing Haina lean Electronics Co.,Ltd is one of the most professional PCB manufacture in Beijing,China. With more then 10 years of development, Haina Lean Electronics turns into a first class manufacture of HDI PCB ,with production capability 4000 square meters.
Our factory is providing high quality bare PCB, PCB layout design service and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all.
We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.
Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.
Our services cover all industries and reach all parts of the world.
