Multi Layer Double Side 2OZ Lead Free Pcb Assembly

Multi Layer Double Side 2OZ Lead Free Pcb Assembly

  • High Light

    2oz lead free pcb assembly

    ,

    double side lead free pcb assembly

    ,

    2oz lead free pcba

  • Product Name
    Lead-Free PCB Assembly
  • Base Material
    FR-4, HASL, Aluminum, FR1, High TG, Ceramic Etc
  • Copper Thickness
    1/3OZ, 1OZ, 2OZ......6OZ
  • Min. Line Width
    0.030mm/0.030mm
  • Board Thickness
    Core Thickness 0.05mm-1.5mm ,Fineshed Board Thickness 0.3-3.5mm
  • Min. Hole Size
    Laser 0.05mm ; Mechnical 0.15
  • Surface Finishing
    HASL, ENIG, OSP, Lead Free HASL, HASL/OSP/ENIG
  • Service
    One-stop Service,PCB & PCBA,ODM And OEM
  • PCB Assembly Method
    Mixed; SMT, DIP, THT
  • Pcb Standard
    IPC-II Standard,IPC-A-610 D,Customized
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS ,UL, IPC-A ,QC080000
  • Model Number
    PCB Assembly 04
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

Multi Layer Double Side 2OZ Lead Free Pcb Assembly

HASL Pb FR4 THT DIP Multilayer Double Side Lead Free PCB Assembly



Lead Free PCB Assembly Introduction



15 years of custom PCB and PCBA manufacturer, PCB electronic board assembly programmable Pcba.

Components involved in lead-free PCB assembly have to meet the requirements of lead-free and ensure the reliability and suitability of final products. With more than 15 years' experience in this field, we has maintained such long-term and friendly cooperation relationship between renowned component manufacturers and distributors around the world, we can purchase high quality lead-free components for our customers and care the environmental concerns.
If you still have problem with lead free, please feel free to contact us.



PCBA CAPABILITIES



FACTORY CAPABILITIES
No. Items 2019 2020
1 HDI Capabilities HDI ELIC (4+2+4) HDI ELIC(5+2+5)
2 Max layer count 32L 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size Laser 0.075mm Laser 0.05mm
Mechnical 0.15 Mechnical 0.15
5 Min Line Width/Space 0.035mm/0.035 0.030mm/0.030mm
6 Copper Thickness 1/3oz-4oz 1/3oz-6oz
7 Size Max Panel size 700x610mm 700x610mm
8 Registration Accuracy +/-0.05mm +/-0.05mm
9 Routing Accuracy +/-0.075mm +/-0.05mm
10 Min.BGA PAD 0.15mm 0.125mm
11 Max Aspect Ratio 10:01 10:01
12 Bow and Twist 0.50% 0.50%
13 Impedance Control Tolerance +/-8% +/-5%
14 Daily output 3,000m2 (Max capacity of equipment) 4,000m2 (Max capacity of equipment)
15 Surface Finishing HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI


PCB assembly process



Drilling---Exposure---Plating---Etaching & Stripping---Punching---Electrical Testing---SMT--Wave Soldering---Assembling---ICT--Function Testing---Temperature & Humidity Testing

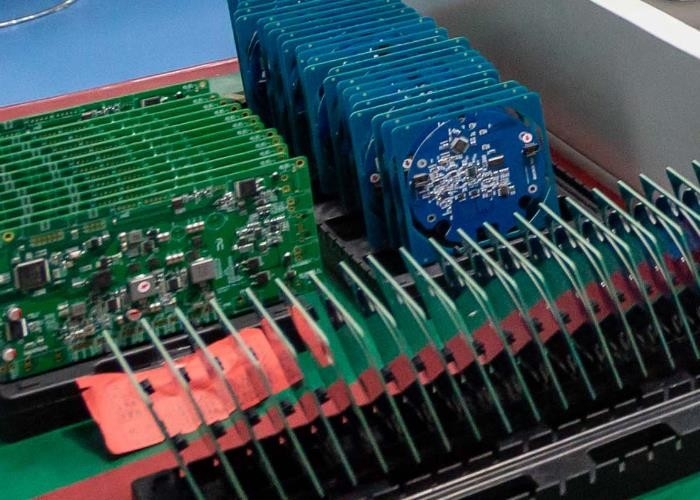

Multi Layer Double Side 2OZ Lead Free Pcb Assembly 0

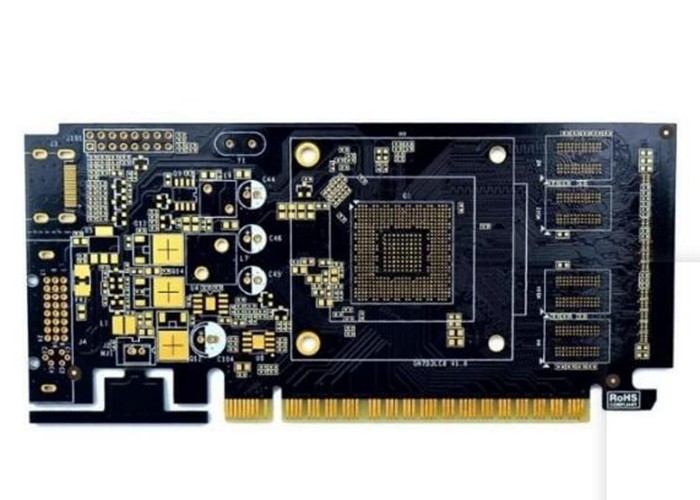

Multi Layer Double Side 2OZ Lead Free Pcb Assembly 1



Lead-Free PCB Assembly Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



Lead-Free PCB Assembly Application Field



Printed circuit boards And PCB Assembly are mainly used for many communication industry ,Aprospace ,Auto Industry ,Communication,Indutrial Control ,Medical device ,Smart Home,consumer electronics ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, printer ,Auto Industry ,Smart Home.etc.



Multi Layer Double Side 2OZ Lead Free Pcb Assembly 2



Workshop



Multi Layer Double Side 2OZ Lead Free Pcb Assembly 3

Multi Layer Double Side 2OZ Lead Free Pcb Assembly 4Multi Layer Double Side 2OZ Lead Free Pcb Assembly 5





Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box



Multi Layer Double Side 2OZ Lead Free Pcb Assembly 6



FAQ


Q1.

What's your MOQ ?
No Moq ,We accept small orders as well as mass production.

Q2.

For small quantity orders, can you produce prototype PCB?

Haina lean Electronics Co., has the capability to produce circuit boards in any amount.
Q3.

Can You provide fast rotating PCB ?
Yes , we can provide fast service 24 hours .
Q4.

What are the services you can provide ?
One-stop contract manufacturing
PCB board, PCB Design & Layout, PCB Assembly, PCBA programming & functional testing, Electronic components purchasing service, Enclosure molding & final assembly with labels,instructions,enclosure, boxes.

Q5.

Whether all PCBA s will be tested before delivery ?
Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .
Q6.

Do you provide OEM service ?
Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .

Q7.

Shipping Cost ?
The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other transportation services .

Q8.

Do you accept process materials supplied by clients?
Yes, we can provide component source, and we also accept component from client. OEM and ODM orders are accepted.



Multi Layer Double Side 2OZ Lead Free Pcb Assembly 7



Our factory owns profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders. Welcome to our factory!
