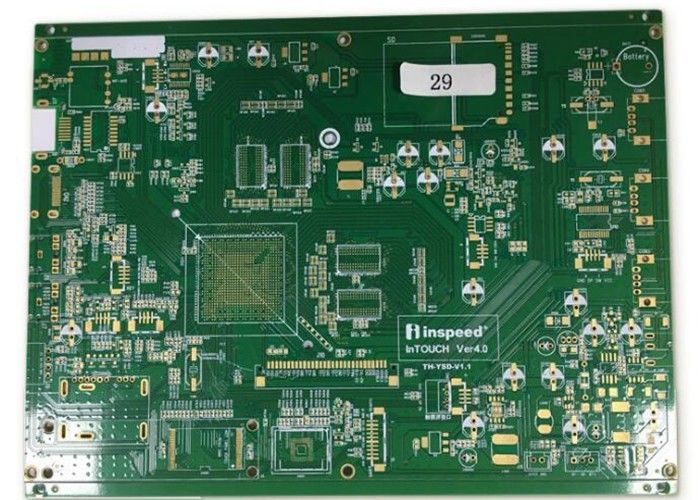

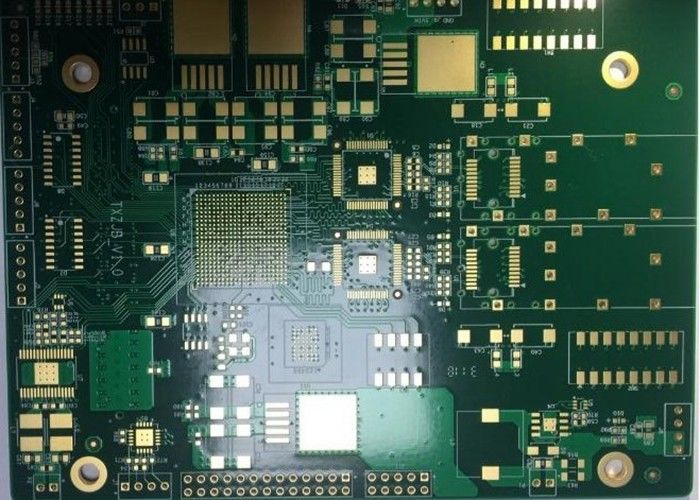

OEM ODM Multilayer 14 Layer HDI PCB Prototype Board

OEM ODM Multilayer 14 Layer HDI PCB Prototype Board

  • High Light

    14 layer HDI PCB prototype

    ,

    HDI 14 layer PCB

    ,

    OEM ODM multilayer PCB prototype

  • Product Name
    HDI PCB Board
  • Material
    FR4, 94v0 Circuit Board
  • Copper Thickness
    0.3OZ,2OZ, ...... 6OZ
  • Min. Line Spacing
    0.030mm,0.05mm ETC.
  • Min. Hole Size
    Laser 0.05mm ; Mechnical 0.15mm
  • Service
    One-stop Service,PCB&PCBA,ODM And OEM
  • PCB Assembly Method
    Mixed, SMT, And THT
  • Board Thickness
    0.3mm, 1mm, 1.6mm, 2mm, ......3.5mm
  • Solder Mask
    Green. Black. Red. Yellow. White. Blue Etc.
  • Number Of Layers
    2/4/6/8/10/12 Layers
  • Place of Origin
    CHINA
  • Brand Name
    HNL-PCBA
  • Certification
    ISO9001,IS16949, ISO14001,ROHS , UL, IPC-A , UL, QC080000
  • Model Number
    PCB Assembly 08
  • Minimum Order Quantity
    1 PC
  • Price
    Negotiable
  • Packaging Details
    ESD packaging with carton box
  • Delivery Time
    1-7days
  • Payment Terms
    T/T, Western Union, L/C, MoneyGram
  • Supply Ability
    10,000,000 Point /Day

OEM ODM Multilayer 14 Layer HDI PCB Prototype Board

OEM/ODM 14Layer Multilayer Circuit Board Prototype HDI PCB Board



HDI PCB Board Introduction



HDI PCB Board is the High-Density Interconnect (HDI) Printed Circuit Boards.

There is little space between the PCB components, making the board space smaller, at the same time the board functionally isn’t affected.

That is, a PCB with about 120 – 160 pins per square inch is an HDI PCB.

All of the other electronic components are mounted on the printed circuit boards(PCBs),which are the foundation.

PCBs have mechanical and electrical attributes,making them for ideal applications. Most PCB’s fabricated are rigid, roughly 90% of the PCB’s manufactured today are rigid boards.



PCB CAPABILITIES



FACTORY CAPABILITIES
No. Items 2019 2020
1 HDI Capabilities HDI ELIC (4+2+4) HDI ELIC(5+2+5)
2 Max layer count 32L 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size Laser 0.075mm Laser 0.05mm
Mechnical 0.15mm Mechnical 0.15mm
5 Min Line Width/Space 0.035mm/0.035mm 0.030mm/0.030mm
6 Copper Thickness 1/3oz-4oz 1/3oz-6oz
7 Size Max Panel size 700x610mm 700x610mm
8 Registration Accuracy +/-0.05mm +/-0.05mm
9 Routing Accuracy +/-0.075mm +/-0.05mm
10 Min.BGA PAD 0.15mm 0.125mm
11 Max Aspect Ratio 10:1 10:1
12 Bow and Twist 0.50% 0.50%
13 Impedance Control Tolerance +/-8% +/-5%
14 Daily Output 3,000m2 (Max capacity of equipment) 4,000m2 (Max capacity of equipment)
15 Surface Finishing ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI


The types of HDI PCB


1.through vias from surface to surface,
2.with buried vias and through vias,
3.two or more HDI layer with through vias,
4.passive substrate with no electrical connection,
5.coreless construction using layer pairs
6.alternate constructions of coreless constructions using layer pairs.





OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 0



Work flow for HDI

Board Cut - Inner Wet film -DES - AOI - Brown Oxido - Outer Layer Press - Out Layer Lamination - X-RAY & Rounting - Copper reduce & brown oxide - Laser Drilling - Drilling - Desmear PTH - Panel plating - Outer Layer dry film - Etching - AOI- Impedance Testing - S/M Pluged hole - Solder Mask - Component Mark - Impedance testing - Immersion Gold -V-cut - Routing - Electrical Test - FQC - FQA -Package -Shipment

RoHS stack-up Blind Buried Vias hole HDI PCB 1

RoHS stack-up Blind Buried Vias hole HDI PCB 2



Similar products



OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 3

OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 4



Delivery Time



Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD



HDI PCB Board Application Field



Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics etc.



OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 5



Workshop



OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 6OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 7

OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 8



Common packaging



1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box



OEM ODM Multilayer 14 Layer HDI PCB Prototype Board 9



FAQ



Q1:What kind of PCB file format can you accept for production?
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)

Q2:Is my PCB files safe when I submit them to you for manufacturing?

We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties.

Q3:What payments do you accept ?
-Telex Transfer(T/T),Western Union,Letter of Credit(L/C)
-Paypal,AliPay,Credit Card

Q4:How to get the PCB?
A:For small packages, we will ship the boards to you by DHL,UPS,FedEx,EMS. Door to door service! You will get your PCBs at your home.
B:For heavy goods more than 300kg, we may ship your boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.

Q5:What is your minimum order quantity?
Our MOQ is 1 PCS.

Q6: Can we visit your company?

No problem. You are welcome to visit us in Beijing. Or the branch factory is in Tianjin.

Q7: How can you ensure the quality of the PCB?
Our PCBs are 100% test including Flying Probe Test, E-test and AOI.



Company information



We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.

Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.
