94v0 Double Side Circuit Board Assembly RoHS Rigid Flexible PCB

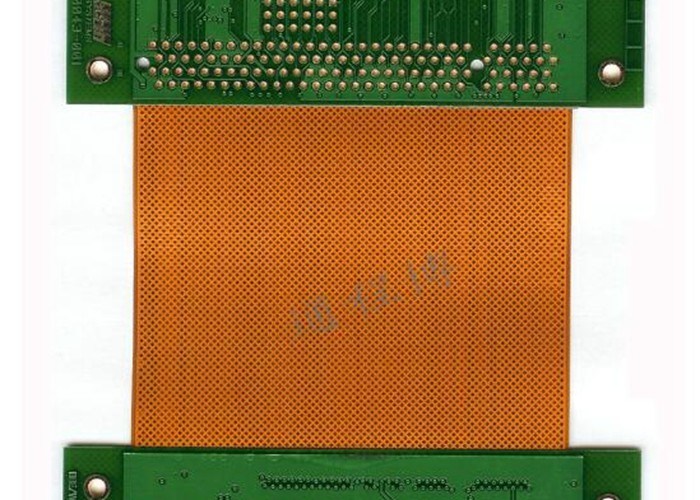

The rigid-flex board is the flexible circuit board and the rigid circuit board, referred to as FPCB. After pressing and other processes, they are combined according to the relevant process requirements to form a circuit board with FPC characteristics and PCB characteristics.
It can be used in some products with special requirements. It has both a certain flexible area and a certain rigid area. It is of great help to save the internal space of the product, reduce the volume of the finished product, and improve the performance of the product.



Factory capabilities



Quality Grade	Standard IPC 2	Material	FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI
Number of Layers	1 - 8layers	Board Size	Custom
Order Quantity	1pc - 10000+pcs	Board Thickness	0.1mm - 0.8mm
Build Time	2days - 5weeks	Copper Weight (Finished)	0.5oz - 6.0oz
Min Tracing/Spacing	3mil/3mil	Silkscreen Sides	As per the file
Solder Mask Sides	As per the file	Silkscreen Color	White, Black, Yellow
Solder Mask Color	Green, White, Blue, Black, Red, Yellow	Surface Finish	HASL - Hot air solder leveling
Solder-stop coating---Soldermask oil	Green, White, Blue, Black, Red, Yellow		Lead - free HASL - RoHS
Solder-stop coating---Coverlay	PI and PET film		ENIG - RoHS
Min Annular Ring	3mil		Immersion Tin - RoHS
Min Drilling Hole Diameter	8mil		OSP - RoHS
Min. hole size---Drilling (PTH)	0.2mil	Other Techniques	Peelable solder mask ;Gold fingers ;Stiffener (only for PI/FR4 substrate)



Process flow

1 Material selection
2 Production process flow and control of key parts
2.1 Production process
2.2 Graphic transfer of the inner monolithic
2.3 Multi-layer positioning of flexible materials
2.4 Laminating
2.5 Drilling
2.6 De-drilling and protruding corrosion
2.7 Electroless copper plating, copper electroplating
2.8 Surface solder mask and solderability protective layer
2.9 Shape processing








Our service



Electronic Manufacturing Service

PCB Electronic Design
PCB Layout Service
PCB Supplier & Quality Inspection Service

PCBA Components Sourcing

PCB Assembly process service



Our advantages

1. Our company has passed the ISO2001 quality system certification, and the processed products meet the export standards of Europe and America

2. There is no minimum order quantity limit, which supports the whole process from sample to batch.

3. A professional component procurement team, centralized procurement, to save your procurement costs, labor costs, quality costs.

4. Professional sample making: SMT samples will be delivered within 24 hours.

5. Our main customer base: automotive electronics, industrial control, security, communication, power and other high-end.

Delivery Time of PCB board



1. PCB production time: sample: 3-4 days / production: within 7 days

2. Fast pcb delivery: 24 hours for 2L ; 48 hours for 4L ; 72 hours for 6L.
3. Component purchase: 2 days if all components is available in our domestic market. PCB Assembly: samples: within 8 days / mass production: within 12 days



Prototype PCB	Batch	Prototype	Expedited
Double sides	9 Days	5 Days	45h
Four-layer	10 Days	5 Days	3 Days
Six-layer	12 Days	6 Days	3 Days
Eight-layer	12 Days	7 Days	4 Days
Ten-layer	14 Days	10 Days	4Days
Twelve-layer	14 Days	10 Days	5 Days
Fourteen-layer	16 Days	12Days	6 Days
Sixteen-layer	16 Days	12 Days	6 Days
Eighteen-layer	18 Days	14 Days	6 Days
Twenty-layer	18 Days	14 Days	10 Days
Twenty two-layer	20 Days	14 Days	10 Days
Twenty four-layer	20 Days	14 Days	10 Days
Twenty six-layer	20 Days	14 Days	10 Days
Twenty eight-layer	20 Days	14 Days	10 Days



Rigid Flexible PCB Application Field

Printed circuit boards and PCB Assembly are widey used in communication industry, power, security, optoelectronics, industrial control, medical equipments, consumer electronics and automobile industry etc field.





Workshop





Testing service



1. Manual visual inspection of PCB board
2. PCB board online test
3. PCB board function test
4. AOI (Automatic optical inspection)
5. Automatic X-ray inspection
6. Laser detection system
7. Size detection

Above is the PCB testing service.

Usually Haina lean Electronics Co.,Ltd PCBA Tech offers a full range of testing service. Including:
1. AOI(Automatic Optical Inspection)
2. Function Testing
3. In Circuit Testing
4. Testing Jig
5. Testing Service
6. X-Ray for BGA Testing
7. Printing Solder Paste Test
Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.
Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested.
Flash testing and earth bonding tests can also be undertaken where required.



Partners





Common packaging

PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box




Why choose us?



Welcome to visit our factory, Haina lean Electronics Co., Ltd.
1. Experienced: Focus on PCB And PCBA munufacturing over 10 years.
2. Professional: Expertise engineer with barrier-free English
3. Rapid delivery: On-time delivery rate reaches 98%
4.Cost effective: No excessive profits. Lower cost with same quality And service


FAQ

Q1.

What's your MOQ ?
No Moq ,We accept small orders as well as mass production.



Q2.

For small quantity orders, can you produce prototype PCB?

Haina lean Electronics Co., has the capability to produce circuit boards in any amount.

Q3.

Can You provide fast rotating PCB ?
Yes , we can provide fast service 24 hours .

Q4.

What are the services you can provide ?
One-stop contract manufacturing
PCB board, PCB Design & Layout, PCB Assembly, PCBA programming & functional testing, Electronic components purchasing service,              Enclosure molding & final assembly with labels,instructions,enclosure, boxes.

Q5.

Whether all PCBA s will be tested before delivery ?
Yes , we will test each piece of PCBA product under your testing methods ,to ensure quality and functionality .

Q6.

Do you provide OEM service ?
Yes ,we offer PCB and PCBA OEM Service , we manufacture the PCB and PCBA products to your design and requirements .



Q7.

Shipping Cost ?
The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other          transportation services .



Q8.

Do you accept process materials supplied by clients?
Yes, we can provide component source, and we also accept component from client. OEM and ODM orders are accepted.



Market Success:
Products are mainly exported to Europe and USA;
Our customers spread over more than 80 countries;
Products are widely used in various industries.
