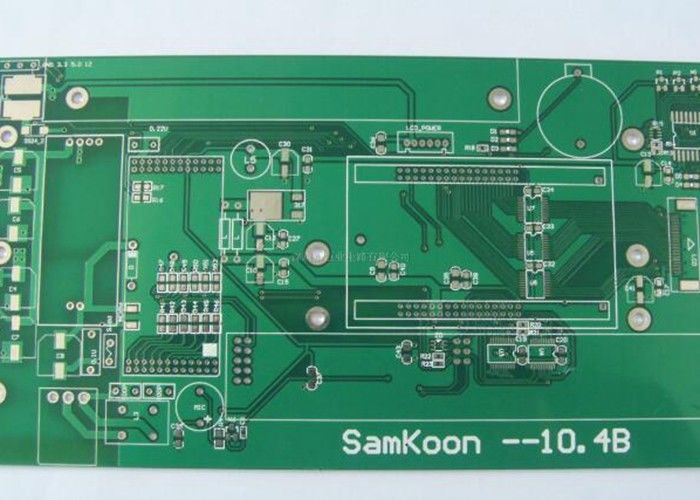

High Tg FR-4 HASL Lead Free AOI PCB Circuit Card Assembly Manufacturing

PCB Circuit Card Assembly Manufacturing Introduction



Printed circuit board (PCB) assemblies include surface-mount technology (SMT) PCB prototypes, PCBA prototype assembly, PCB sample assembly, etc. The term prototype PCB Assembly refers to a fast prototype PCBA used to test the function of new electronic designs.

The prototype PCB assembly section of our manufacturing facility has a unique layout that allows for flexible use of both automated and manual parts-loading stations. Our engineers is qualified and experienced in producing surface-mount (SMT), through-hole (THT) and mixed-technology components and fine-pitch parts and ball grid arrays (BGAs) for high-density FR-4 PCBs .



Haina lean Electronics is a one-stop EMS supplier integrating PCB design, PCB manufacturing, Component sourcing and PCB assembly.
The company is specialized in electronic products supporting processing services, mainly to undertake circuit board design, layout production, components procurement, PCB plate making, circuit board welding assembly debugging and other OEM/ODM services.



PCB CAPABILITIES





FACTORY CAPABILITIES
No.	Items	2019	2020
1	HDI Capabilities	HDI ELIC (4+2+4)	HDI ELIC(5+2+5)
2	Max layer count	32L	36L
3	Board Thickness	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4	Min.Hole Size	Laser 0.075mm Mechnical 0.15	Laser 0.05mm Mechnical 0.15
5	Min Line Width/Space	0.035mm/0.035	0.030mm/0.030mm
6	Copper Thickness	1/3oz-4oz	1/3oz-6oz
7	Size Max Panel size	700x610mm	700x610mm
8	Registration Accuracy	+/-0.05mm	+/-0.05mm
9	Routing Accuracy	+/-0.075mm	+/-0.05mm
10	Min.BGA PAD	0.15mm	0.125mm
11	Max Aspect Ratio	10:1	10:1
12	Bow and Twist	0.50%	0.50%
13	Impedance Control Tolerance	+/-8%	+/-5%
14	Daily output	3,000m2 (Max capacity of equipment)	4,000m2 (Max capacity of equipment)
15	Surface Finishing	HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16	Raw Material	FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI



PCBA CAPABILITIES



PCBA Capability
Material Type	Item	Min	Max
PCB	Dimension (length,width,height.mm)	50*40*0.38	600*400*4.2
	Material	FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
	Surface finish	HASL,OSP,Immersion gold,Flash Gold Finger
Components	Chip&IC	1005	55mm
	BGA Pitch	0.3mm	-
	QFP Pitch	0.3mm	-



PCB Aassembly Production Process



PCB,Component sourcing ,QC ,SMT Process ,AOI ,Test ,Automatic optical inspection ,DIP Process ,Washing board ,FQC .

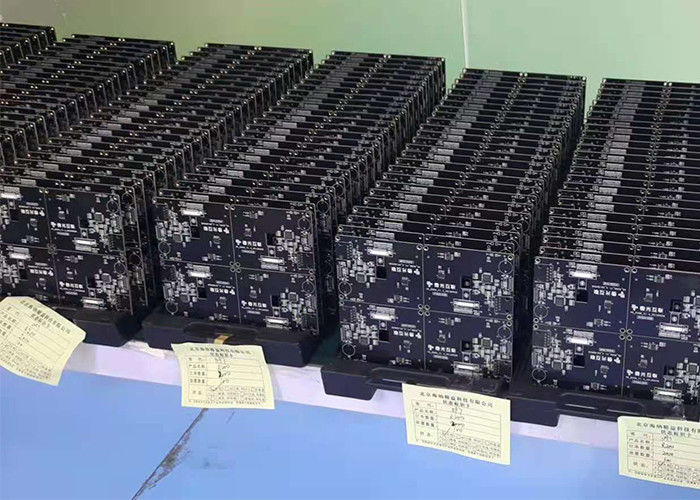

Our WorkShop





Green Red Yellow Blue PCBA Application Field



Printed circuit boards And PCB Assembly are mainly used for many telecom communication industry, medical equipments, consumer electronics ,automotive electronics, audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer ,Auto Industry ,Smart Home.etc.



Delivery Time



Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD



Partners





Common packaging

PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box





FAQ



Q1:What service do you have?

A1: We provide turnkey solution including RD, PCB fabrication, SMT, PCB Assembley ,final assembly,testing and other
value-added service.

Q2:What are the main products of your PCB/PCBA services?

A2:Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy,
Metering/Measurements. Consumer Electronics.

Q3:How can we ensure our information should not let third party to see our design?

A3: We are wiling to sign NDA effect by customer side locallaw and promising to keep customers datain highconfidential level.

Q4:What does Parason need for a customized PCB order?

A4:When you place a PCB order, the customers need to provide Gerber or pcb file.If you do not have the fileinthe correct format, you can send all the details related to the products.

Q5:What will be needed for a customized PCBA order?

A5: When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list to us.

Q6:Do you have an minimum order quantity?

A6:We accept order with as low as a quantity of 1 (piece or panel)
