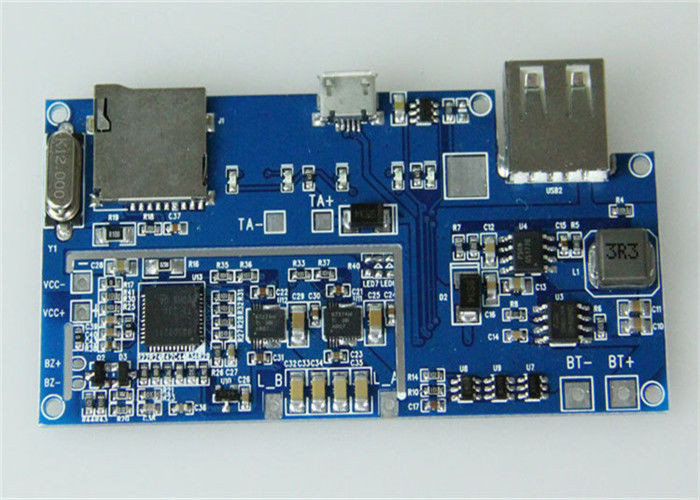

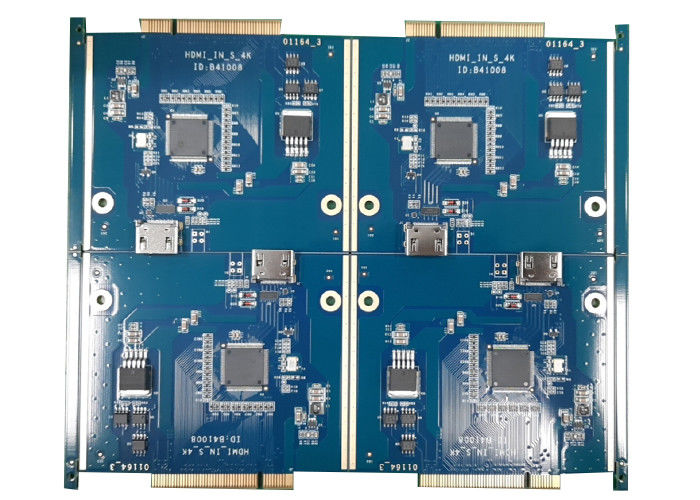

Blue Multilayer HDI Prototype SMT PCB Assembly for Driverless



PCBA Assembly Introduction

We are specialized in manufacturing all kinds of PCB & PCBA for communication industry, automotive industry , industry control ,medical industry .home appliance etc .Service on both OEM and ODM project. We have been in this line for more than 10 years.With the professional R&D team and skillful workers, We can offer you one stop solution from PCB fabrication, Components purchasing, PCB assembly, fuction test to the whole fabrication.we can put your design into physical product, and also put your idea into workable design and product.



PCB CAPABILITIES



FACTORY CAPABILITIES
No.	Items	2019	2020
1	HDI Capabilities	HDI ELIC (4+2+4)	HDI ELIC(5+2+5)
2	Max layer count	32L	36L
3	Board Thickness	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4	Min.Hole Size	Laser 0.075mm Mechnical 0.15	Laser 0.05mm Mechnical 0.15
5	Min Line Width/Space	0.035mm/0.035	0.030mm/0.030mm
6	Copper Thickness	1/3oz-4oz	1/3oz-6oz
7	Size Max Panel size	700x610mm	700x610mm
8	Registration Accuracy	+/-0.05mm	+/-0.05mm
9	Routing Accuracy	+/-0.075mm	+/-0.05mm
10	Min.BGA PAD	0.15mm	0.125mm
11	Max Aspect Ratio	10:1	10:1
12	Bow and Twist	0.50%	0.50%
13	Impedance Control Tolerance	+/-8%	+/-5%
14	Daily output	3,000m2 (Max capacity of equipment)	4,000m2 (Max capacity of equipment)
15	Surface Finishing	HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16	Raw Material	FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI



PCBA CAPABILITIES



PCBA Capability
Material Type	Item	Min	Max
PCB	Dimension (length,width,height.mm)	50*40*0.38	600*400*4.2
	Material	FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC
	Surface finish	HASL,OSP,Immersion gold,Flash Gold Finger
Components	Chip&IC	1005	55mm
	BGA Pitch	0.3mm	-
	QFP Pitch	0.3mm	-



PCBA Assembly Process

PCB Loading , Solder paste printing ,surface mounting , Reflow soldering , DIP Soldering ,Wave soldering ,AOI ,X ray ,First article inspection ,QC ,Package ,Shipping .





Delivery Time



Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD



PCB Assembly Application Field



Medical Products ,Office Equipment,Household Appliances,Automotive electronics, Driverless ,digital electronics,

aerospace products, communication electronics, industrial control, elevator, high speed railway, digital TV,

satellite, radar,Video processing, Gateway control ,Network devices ,etc





Partners





Common packaging

PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box





Certification









FAQ



Q1.What are needed for quoation ?

PCB :Gerber File (Protel.Power PCB ,PADs File)
PCBA: Gerber File and BOM



Q2.What file formats do you accept for production ?

Gerber file :CAM350 RS274X
PCB File:protel 99SE ,P-CAD 2001 PCB
BOM:Excel (PDF,Word ,txt)



Q3.Are my files safe ?

Your files are held in complete safety and security ,we protect the intellectual property for our customers in the whole process .All documents from customer are never shared with any third parties .



Q4.What's your MOQ ?

1PC ,We accept small orders as well as mass production



Q5.Shipping Cost ?

The shipping cost is determined by the destination ,weight ,packing size of the goods .We can provide shipping, air, land, express and other transportation services .



Q6.Can You provide fast rotating PCB ?

Yes , we can provide fast service 24 hours .



Q7.What are the services you can provide ?

One-stop contract manufacturing
A:PCB Assembly;
B:PCB Design & Layout
C:PCBA programming & functional testing;
D:Electronic components purchasing service;
E:Enclosure molding & final assembly with labels,instructions,enclosure, boxes.

Q8. How do you make sure the quality?
 Our Product is all 100% tested including Flying Probe Test (for sample), E-test (mass) or AOI.



Our services include



PCB Design
PCB Fabrication
PCBA Assembly
Components Sourcing
Function Testing
Enclosure/box/finished Assembly





Company Information



Beijing Haina lean Electronics Co.,Ltd is one of the most professional PCB manufacture in Beijing,China. With more then 10 years of development, Haina Lean Electronics turns into a first class manufacture of HDI PCB ,with production capability 4000 square meters.

Our factory is providing high quality bare PCB, PCB layout design service and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all.



We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.

Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.



Haina lean Electronics is a one-stop EMS supplier integrating PCB design, PCB manufacturing, Component sourcing and PCB assembly.
The company is specialized in electronic products supporting processing services, mainly to undertake circuit board design, layout production, components procurement, PCB plate making, circuit board welding assembly debugging and other OEM/ODM services.
